Secure SIP Auto Attendant configurations
Imagicle Advanced Queuing and Auto Attendant module supports Secure SIP trunk and Secure RTP audio streams, for calls which are placed with Secure SIP (SIP/TLS) for signaling, SRTP for the audio stream. Please note this requires at least CuCM versions 11.0 or newer.
Requirements
Before trying to enable Secure calls, please make sure Imagicle Auto Attendant is fully configured to handle Non-Secure calls with clear RTP.
Mixed mode must be enabled on your CUCM, and you must be able to effectively place and receive secure calls to and from the agents' phones.
Cisco Unified CallManager™ Configuration
To handle Imagicle Auto Attendant secure calls, you need to:
Configure Enterprise Parameters for SRTP.
Load the Imagicle digital certificate on CuCM, categorized as CallManager-trust
Create a SIP Trunk Security Profile which references the Imagicle Certificate
Create a SIP trunk which points to the Imagicle UCX Suite server, port 5063, and uses the SIP Trunk Security Profile
Warning: if a firewall is set between the CallManager nodes and the UCX Suite servers, the TCP port 5063 must be allowed on both sides.
Configure Enterprise Parameters for SRTP
The longest cipher key length supported by Imagicle Auto Attendant for SRTP voice encryption is 128 bit. Therefore, the SRTP cipher set configured on CUCM shall allow such key length.
On CUCM admin portal:
Select System -> Enterprise Parameters

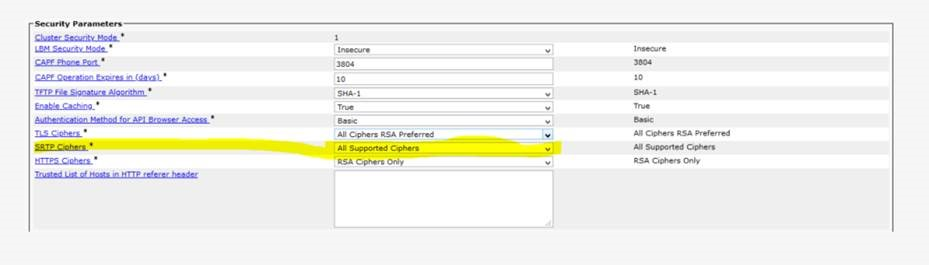

Move to the "Security Parameters" section and ensure the parameter SRTP Ciphers allows AES-128 bit cipher algorithm (hence choose "All Supported Ciphers").
Download the Imagicle Certificate from UCX Suite and Upload it on CUCM
Please follow the procedure highlighted here.
Creating a SIP Trunk Security Profile with Encryption
From the Cisco Unified CM Administration menu, select System, Security, Sip Trunk Security Profile.

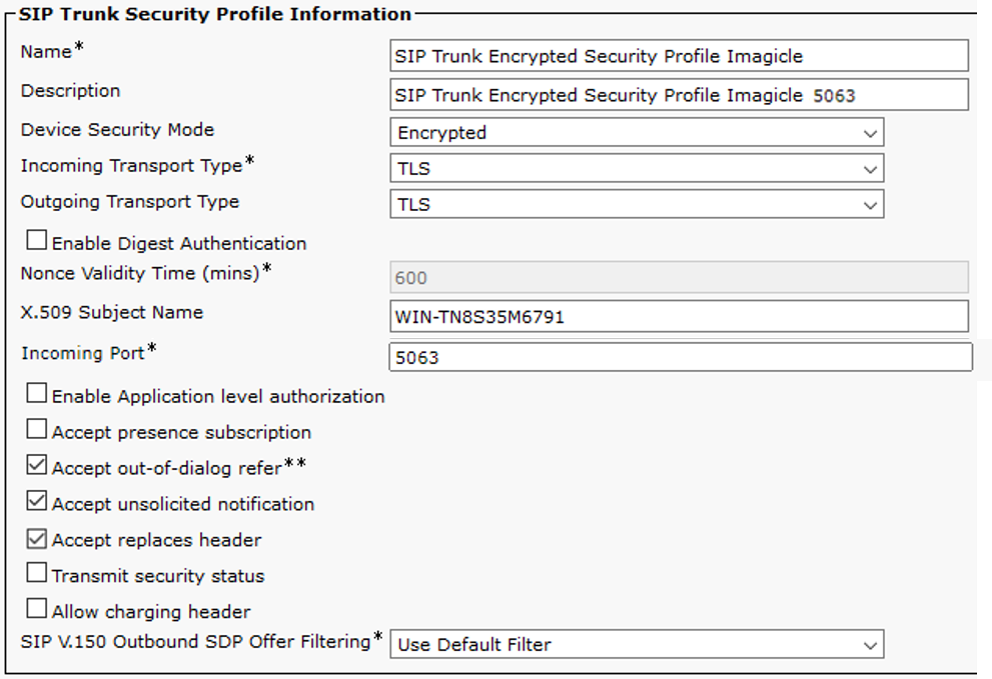

Add a new item with the following properties:
Incoming Transport Type: TLS
Outgoing Transport Type: TLS
Incoming port: 5063
Accept Out of Dialog Refer: enabled
Accept Unsolicited Notification: enabled
Accept replaces header: enabled
X.509 Subject Name: enter the Imagicle Digital Certificate Common Name you noted before.
Please mind the certificate name. Do not enter the certificate description. Do not enter the full Subject Name. Enter the Common Name.

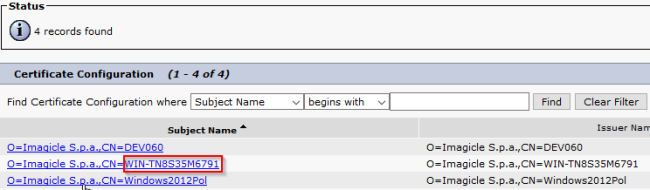

If you are unsure, select System, Security, Certificate, and press the Find button. Locate the Imagicle certificate. The Common Name is displayed in the Subject Name column, just after CN=
If you need to manage multiple Imagicle UCX Suite nodes, you must specify in the X.509 Subject Name of the SIP Trunk security profile the list of the involved certificates CN (one for each Imagicle server), separated by comma.
For instance: WIN-TN8S35M6791,WIN-TN3V45K2V27
Creating a SIP Trunk for Secure SIP Auto Attendant

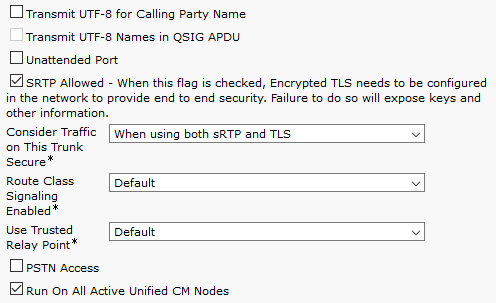

A Secure Sip Trunk is a standard SIP trunk with the following properties:
A descriptive name, such as Imagicle_QME_SIP_Trunk_Encrypted
SRTP Allowed enabled
Run On All Active Unified CM Nodes enabled
Destination Address: the IP Address of the Imagicle UCX Suite server
Destination Port: 5063
SIP Trunk Security Profile: reference the one you just created
Route Patterns

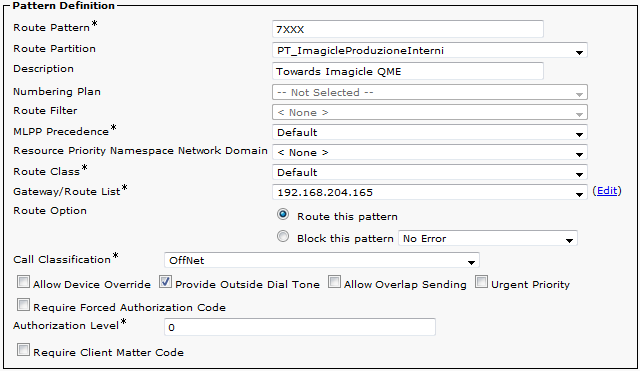

A route pattern is needed to route incoming, encrypted calls to Imagicle Auto Attendant. The route pattern pointing to Imagicle_QME_SIP_Trunk_Encrypted should be defined accordingly with the PBX numbering plan and with the IVR phone number. For example, defining a route pattern 8XX will allow to manage IVRs with phone number 801, 802, etc..
The route patterns and the other rules used to send calls to AutoAtt should never change the called party number.
Mixed environments
Imagicle Auto Attendant can only manage calls from/to secure devices. If you need Imagicle Auto Attendant to manage calls both from secure and unsecure devices, you need to:
define two SIP trunks for each Imagicle UCX Suite server (one not secure and one secure, as described above);
configure secure devices (phones/VG) to reach Imagicle Auto Attendant IVRs through the secure SIP trunk;
configure unsecure devices (phones/VG) to reach Imagicle Auto Attendant IVRs through the unsecure SIP trunk;
that basically requires to define on CUCM:
2 different partitions;
2 different CSS;
2 different route lists (secure + unsecure);
2 different route patterns for each IVR number or range to be routed to Imagicle Auto Attendant.
Sharing same Secure SIP Trunk with Imagicle Advanced Queuing
Please remember that both Imagicle Auto Attendant and Advanced Queuing are sharing same trunk. If you are leveraging both apps, please consult this KB for further details and configuration.
