Configurable timeout for CTI/TAPI line monitoring initialization
Applies to
Imagicle UCX Suite Winter 2019 or newer
Description
Bug symptoms:
While autenticanting with UCX Console, user receives a message of incorrect credentials (username and password) even if these are correct.
At lines TAPI monitoring start, something goes wrong and log file Var\Log\ ApplicationSuite.Phone.ControlService\ApplicationSuite.log.txt ends with the following line:
INFO { 10} [ApplicationSuite] [SvTapiManager] Initializing main TAPI object.Cause
Bug root cause is related to the fact that if TAPI monitoring freezes, Phone Control remains locked in a not-ready state and Console, having exceeded its unanswered timeouts from server, returns an error message. In addition to that, if TAPI initialization is unlocked after a certain time, agent is wrongly shown as connected event if he is not.
The only work-around consists in turning off services and restart Phone Control.
Solution
Two configuration parameters have been added:
Phone Control TAPI Library initialization timeout
Phone Control line monitoring initialization timeout
TAPI Library initialization timeout parameter configuration
A new configurable parameter has been introduced to allow setting of the Phone Control TAPI library initialization timeout. This parameter is configured by default using the key tapi.initializationTimeout.minutes in the configuration file \ Apps \ ApplicationSuite \ Settings \ ApplicationSuite.Phone.Control.schema.xml
<!-- TAPI Manager Initialization Timeout expressed in minutes ( if 0 or less, timeout will be set to max value) -->
<preference key="tapi.initializationTimeout.minutes" defvalue="10" type="System.Int32" attributes="" />Parameter override can be handled, as usual, by adding to the corresponding settings file ApplicationSuite.Phone.Control.config.xml a type key as follows:
<preference key="tapi.initializationTimeout.minutes" value="1" />Parameter is in minutes and its default value is 10.
If the value is set to 0 (or any negative number), the system will use the maximum available value (24 days, 20 hours, 31 minutes and 23 seconds).
If TAPI monitoring starting does not end successfully within the indicated timeout, Phone Control generates an error. In this case it is necessary to switch off the service.
Line monitoring initialization Timeout parameter configuration
In addition to the above, a further configurable parameter has been introduced to set the timeout for the Attendant Server to monitor a TAPI line. This parameter is configured by default with the Attendant.Core.ConsoleServer.PhoneControl.ConnectionTimeout.Seconds key in the configuration file \Apps\Attendant\Settings\Attendant.schema.xml
<!-- PhoneControl: TAPI line initialization expressed in seconds ( if 0 or less, timeout will be set to max value) -->
<preference key="Attendant.Core.ConsoleServer.PhoneControl.ConnectionTimeout.Seconds" defvalue="17" type="System.Int32" attributes=""/>The override can be executed, as usual, by adding to the corresponding settings file Attendant.config.xml a key of the type
<preference key="Attendant.Core.ConsoleServer.PhoneControl.ConnectionTimeout.Seconds" value="10" />The parameter is in second and its default value is 17. This key must always be set to a value minor than client-side timeout, configurable by the AuthenticationTimeout key in the Attendant.Client.schema.xml file (default value 20 seconds).
If the value is set to 0 (or any negative number), the system will use the maximum available value, (24 days, 20 hours, 31 minutes and 23 seconds).

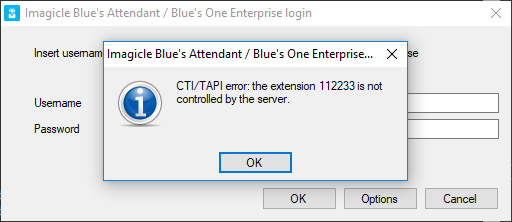

If TAPI monitoring starting does not end successfully within the indicated timeout, UCX Console Server generates an error and, after receiving an "Init Complete" message from the client, returns an empty list of controlled lines, which results into the following error message from the client (Error message shown by Attendant Console in case of failure in checking TAPI line within the configured timeout)
Troubeshooting
TAPI Library Initialization Timeout
Log file Var\Log\ApplicationSuite.Phone.ControlService\ApplicationSuite.log.txt, when TAPI library is successfully loaded, shows the following logging (timeout is set to 1 minute in the example below: Phone control log with successful TAPI library inizialization. Timeout set to 1 minute.)

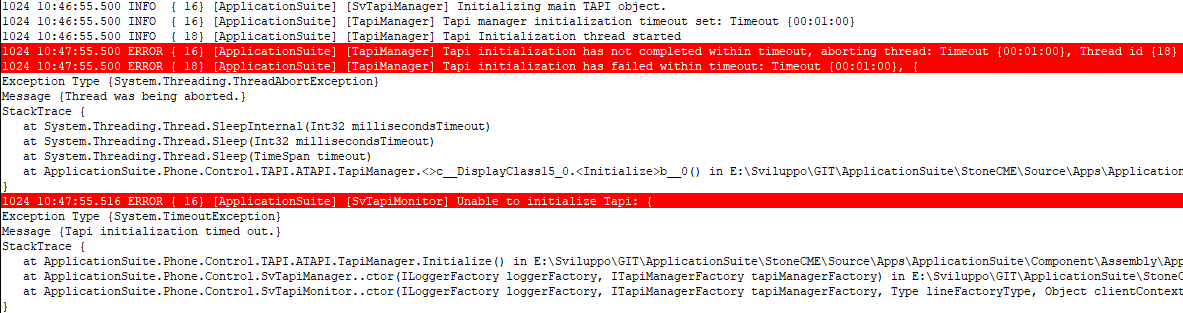

Phone control log with timeout TAPI library inizialization (In the example below: Phone control log with timeout unsuccessful TAPI library inizialization. Timeout set to 1 minute)
In case a timeout occurs, the following logs are produced

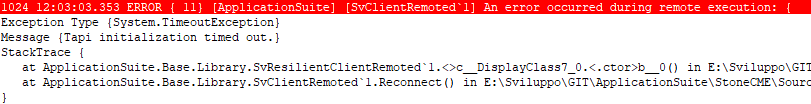

in Var\Log\Attendant.Core.ConsoleServerService\Attendant.log.txt ( (Attendant Server Log→ Application Suite in case of timeout unsuccessful TAPI library inizialization):

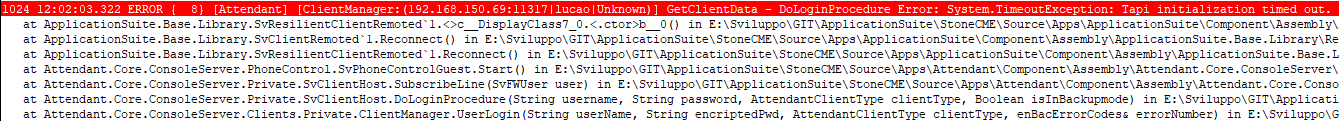

in Var\Log\Attendant.Core.ConsoleServerService\Attendant.log.txt (Attendant Server Log → Attendant in case of timeout unsuccessful TAPI library inizialization):
Line Monitoring Inizialization Timeout

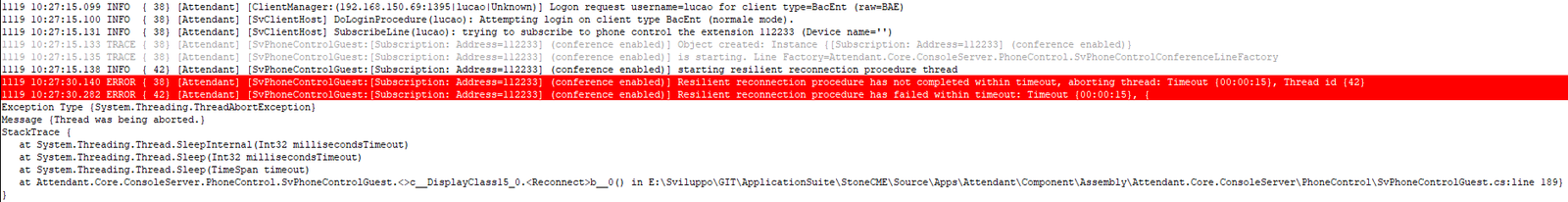

Log file Var\Log\Attendant.Core.ConsoleServerService\Attendant.log.txt, in case of line monitoring inizialization timeout, shows the following log lines (Attendant Server Log → Attendant in case of timeout unsuccessful line monitoring initialization):
In addition, after receiving the message of Init_complete from the CLient, the following line is produced (UCX Console Server Log → Attendant sending to client an empty list of controlled lines):
