How to enable custom fields

Applies to:

UCX Suite, any version

Description:

Enable and customize custom fields

Enabling the UCX Suite Custom Fields

Access to Imagicle UCX Suite server via RDP and edit file:

C:\Program Files (x86)\StonevoiceAS\Apps\Speedy\Settings\CustomFields.config.xml

Add the required lines for each internal and/or external custom field to be enabled (see sample below).

CODE

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  ...
  <!-- External phone-type Custom field -->
  <preference key="EnableFieldExternalCustom1"  value="true" />
  <preference key="LabelExternalCustom1"        value="Assistant Number" />
  <preference key="FieldTypeCustom1"            value="Telephone" />

  <!-- External string-type Custom field -->
  <preference key="EnableFieldExternalCustom2"  value="true" />
  <preference key="LabelExternalCustom2"        value="Assistant Name" />
  <preference key="FieldTypeCustom2"            value="String" />
...
  <!-- Internal string-type Custom field -->
  <preference key="EnableFieldInternalCustom1"  value="true" />
  <preference key="LabelInternalCustom1"        value="Manager Name" />
  <preference key="FieldTypeCustom1"            value="String" />

  <!-- Internal phone-type Custom field -->
  <preference key="EnableFieldInternalCustom2"  value="true" />
  <preference key="LabelInternalCustom2"        value="Manager Number" />
  <preference key="FieldTypeCustom2"            value="Telephone" />
  ...
  <!-- Add the following two lines to show enabled custom fields in web portal -->
  <preference key="InternalHiddenColumns" value="Businessphone,Companyname,Custom10,Custom3,Custom4,Custom5,Custom6,Custom7,Custom8,Custom9,Fax,FaxAlias,Homephone,HomePhoneAlias,Mobileprivate,MobilePrivateAlias,MobileBusinessAlias,BusinessPhoneAlias,Postaladdress,CostCenter"/>
  <preference key="ExternalHiddenColumns" value="Custom10,Custom3,Custom4,Custom5,Custom6,Custom7,Custom8,Custom9,Homephone,HomePhoneAlias,FaxAlias,Mobileprivate,MobilePrivateAlias,MobileBusinessAlias,BusinessPhoneAlias,Postaladdress,Primaryextnumber,Username,Department,CostCenter"/>
  ...
</configuration>

Save and close the file
Restart CTI service from this menu item: UCX Console ⇒ Manage Service

You can have the same custom field enabled for Internal (UCX Suite users) and External (Contact Manager) contacts, providing they share same field type (both String or Telephone).

"Telephone" custom field type is associated to a phone number that can be dialed by UCX Console and IP Phones.

How to enable and display custom fields in UCX Console

Internal custom: "Colleagues" tab, by checking relevant custom field from "Show" pull-down menu

External custom: "Contacts" tab, by checking relevant custom field from "Show" pull-down menu

How to enable and display custom fields in IP Phones

Edit file: C:\Program Files (x86)\StonevoiceAS\Apps\Speedy\Settings\SpeedyPhoneService.config.xml
Add the following lines between "configuration" statements:

CODE

<preference key="Speedy.contacts.DisplayPhones" value="Custom1" />
<preference key="SearchFormFields.field.label.Custom.GetFrom" value="External" />

Save and close file

Please remember that "Telephone" type custom fields are displayed in the list of contact's associated phone numbers and they can selected to trigger an outgoing calls. "String" type custom fields are displayed while selecting "Details" softkey.

Edit the label name for Internal custom fields in UCX Suite's user management web portal (optional)

Edit file: C:\Program Files (x86)\StonevoiceAS\Locale\EN\users.dat.asp
"EN" is the language folder in use. You can change data for other languages, too: IT, FR, ES, DE, AR
Pls. change below lines as required.

CODE

strUsersField_user_Custom1              = "Manager name"
strUsersField_user_Custom2              = "Manager number"
strUsersField_user_Custom3              = "Label_name_custom_field_3"
strUsersField_user_Custom4              = "Label_name_custom_field_4"
strUsersField_user_Custom5              = "Label_name_custom_field_5"
strUsersField_user_Custom6              = "Label_name_custom_field_6"
strUsersField_user_Custom7              = "Label_name_custom_field_7"
strUsersField_user_Custom8              = "Label_name_custom_field_8"
strUsersField_user_Custom9              = "Label_name_custom_field_9"
strUsersField_user_Custom10             = "Label_name_custom_field_10"

Save and close file

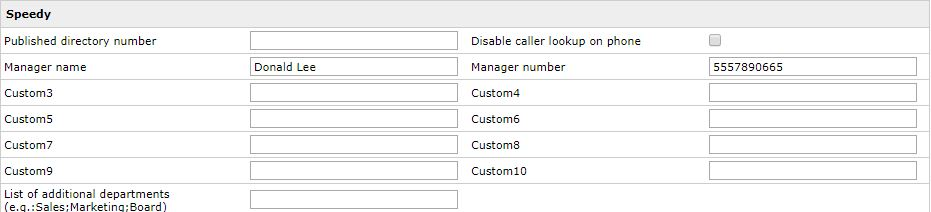

See below a screenshot from user's data, with new custom labels:

Please remember that above labels change is lost after an Imagicle release update. You must edit users.dat.asp again, to restore custom labels.
