UCX Suite Licenses Activation

Admin ⇒ Licenses web portal menu shows the list of the available applications and if they are licensed, in evaluation mode, permanent mode or if the licenses are expired.

Evaluation period

After the first installation/deployment, each application runs for 30 days in evaluation mode.

Evaluation may be extended upon request to Imagicle Sales department.

License Activation

Starting from Imagicle 2019.Summer.1 release, we have added a brand new cloud-based activation method, using an "Activation Token" generated by Imagicle Cloud portal. The existing "offline" activation method", based on "Request String" + "Response Strings" is still available for backward compatibility.

In the following paragraphs, we are describing both methods, starting from most recent one.

Cloud Licensing (available from Imagicle 2019.Summer.1 release)

Cloud-based activation method requires UCX Suite server to reach a specific Internet URL: https://api.imagicle.com

If Internet access is controlled by a Proxy Server, then please make sure that it allows a transparent connection to above web URL (i.e. tunnel), not using "Decrypt and Scan" mode. Proxy configuration instructions are available here.
Test Cloud Connection:
Open a browser in UCX Suite Server and go to https://api.imagicle.com/test
this message confirms the correct connection to our Cloud.

CODE

{
    "message":"successfully connected!"
}

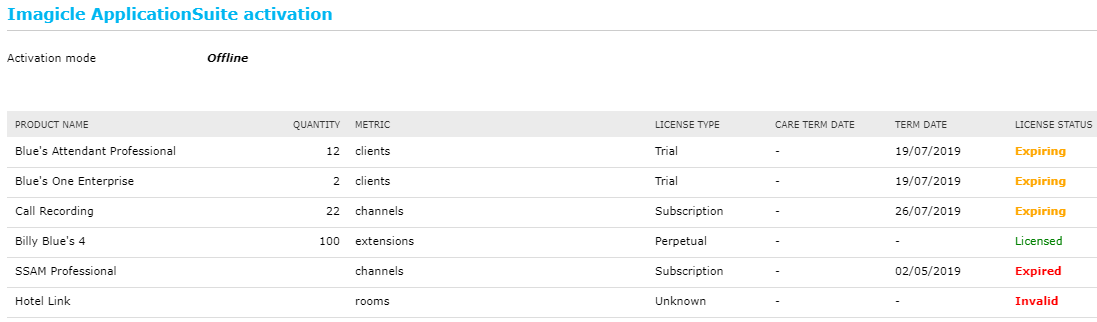

From Imagicle web portal Admin ⇒ Licenses, it's possible to view current licenses status. See below sample:

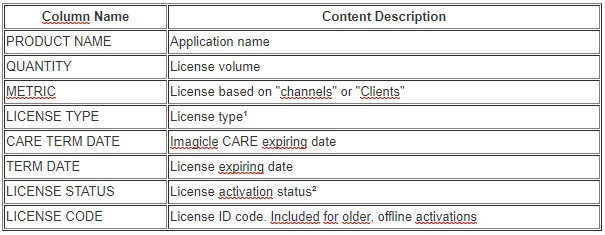

For every license, the following information are included:

¹ License Type

Supported UCX Suite license types are:

Perpetual: never expires
Subscription: it expires, depending on annual subscription
Evaluation: trial license for evaluation purposes, expiring in 30 days from deployment
Unknown: Wrong or not recognized license

² License Status

Each license is associated to own status:

Licensed: active license
Expiring: trial or subscription license, expiring within 30 days
Expired: trial or subscription license, already expired
Invalid: invalid license code

Perpetual licenses never expires.

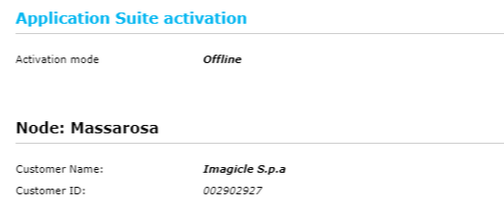

Licenses web page shows offline/online activation mode. If that's a brand new UCX Suite, this information is not shown. Moreover, for each node, the following data is shown:

Node ID
Customer name
Customer ID

If you are updating a UCX Suite with a release older than 2019.Summer.1, some of above information are not available and subsequently not displayed. See below:

First time activation

From "Licenses" web page, please click on Activate Now button to initiate the license activation procedure. You are immediately prompted to select desired activation mode:

Online Activation: Self-service activation through Imagicle cloud service
Offline Activation: Offline activation, through Imagicle Delivery team

Online Activation

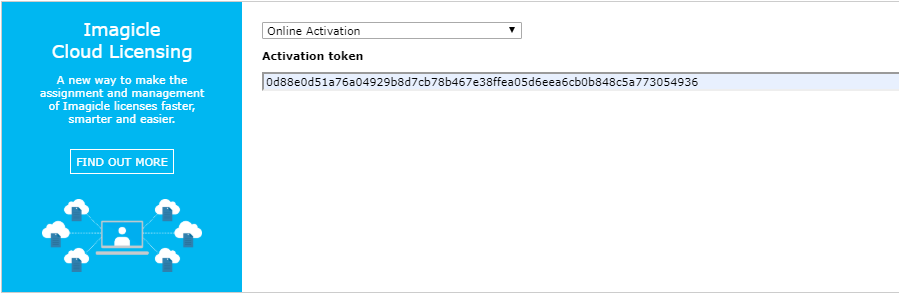

It requires an "Activation Token", generated from Imagicle Cloud licensing portal. Please make sure you have received a "Smart Account" from Imagicle, otherwise you can request it from above Imagicle Cloud portal.

Once you have the token, pls. enter it in the relevant field "Activation Token". Hit Save to enable licenses or Cancel to go back to initial license screen.

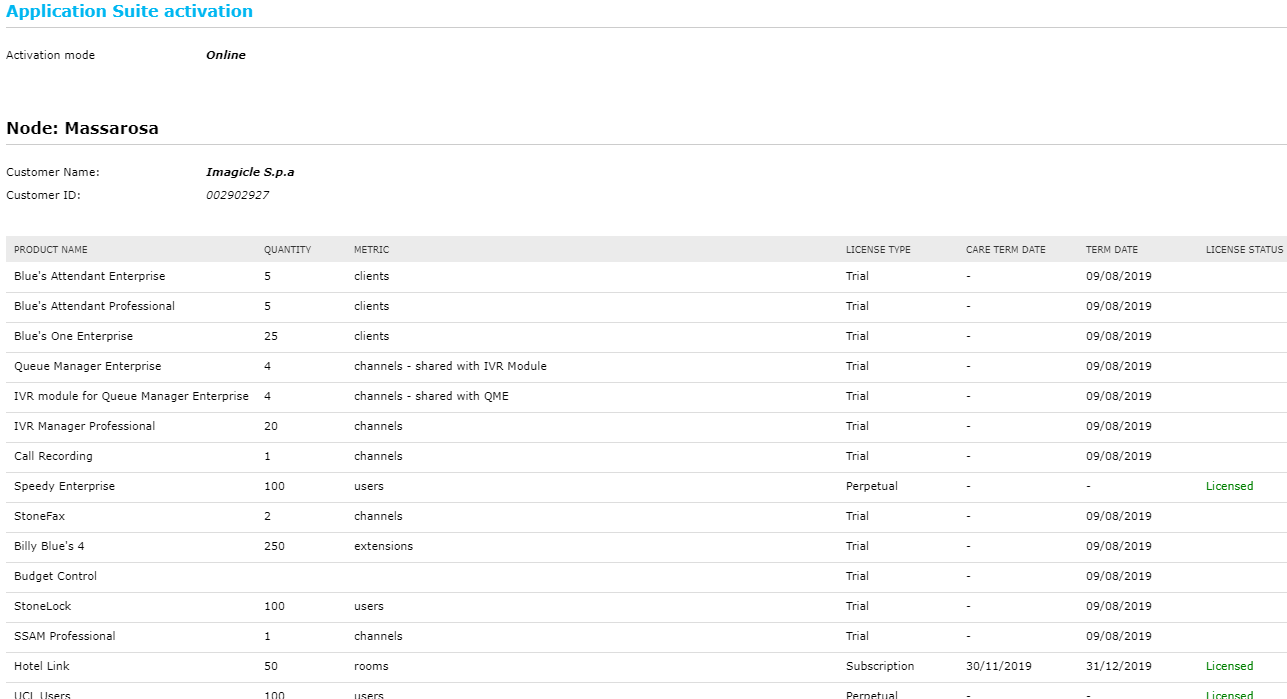

If activation is successfull, you are redirected to initial license page, which now shows:

ActivationMode: Online
A Change button which allows to change activation mode or add/remove licenses by updating the Activation Token.

If an online-activated UCX Suite can't reach Imagicle Cloud Licensing Portal for a long time, the instance keeps on working as usual until the subscription period expires.

Offline Activation

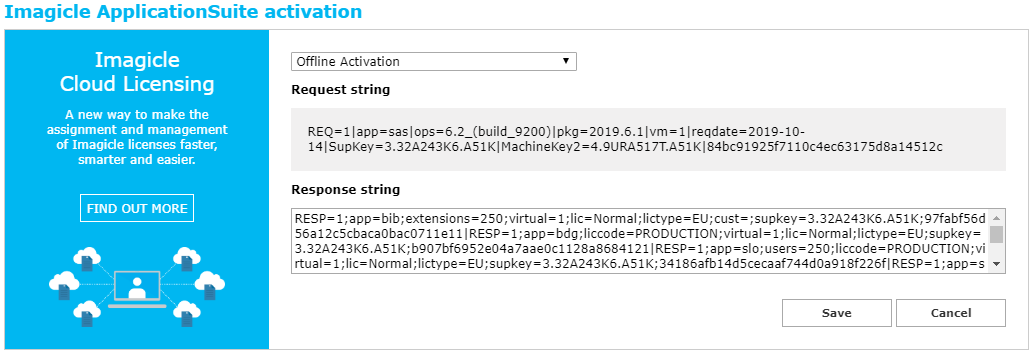

First you need to retrieve the Request String from Imagicle Licenses web page.

Then you can generate the "Response String" from Imagicle licensing portal, by entering License Code (provided by Imagicle) and above Request String.

Once you have the string, pls. enter it in the relevant field "Response String". Hit Save to enable licenses or Cancel to go back to initial license screen.

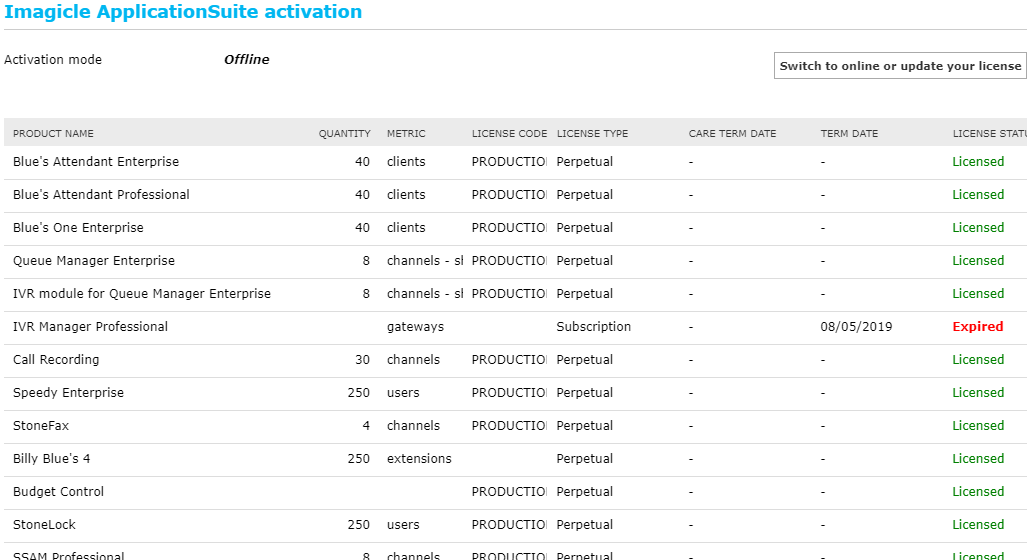

If activation is successfull, you are redirected to initial license page, which now shows:

ActivationMode: Offline
A "Switch to online or update your license" button which allows to change activation mode or add/remove licenses by updating the Response String.

Limitation

CARE TERM DATE field is empty, when offline activation is selected. It might include outdated information
While updating to latest UCX Suite, from an existing, production 2019.Spring.1 or older release, resulting activation mode is Offline. No need for further activation activities.
New UCX Suite installations are configured by default with Online activation.
"Licenses" web page is accessible to Admin users only, with level 10 permissions (Complete Management)
Replacing an existing activation token with a new one is allowed
If an empty Activation Token/Response String is configured, all active licenses are removed. If you are within evaluation period, it doesn't make any difference. To re-activate the node, please enter previously removed valid Activation Token/Response String.

License renewal upon crash or migration

If your server crashes or your configuration is corrupted, you can resume full operativity by restoring all data and configurations, previously saved with a backup. See here the procedure for data backup/restore.

If you do not have a backup, or if you want to migrate UCX Suite to a new OS or a new hardware, please reinstall Imagicle UCX Suite as described in the Installation section. A new Activation Token/Response String will be generated, so you'll need to run through the activate procedure to enable licenses in new server.

Offline-only Licensing (available up to Imagicle 2019.Spring.1 release)

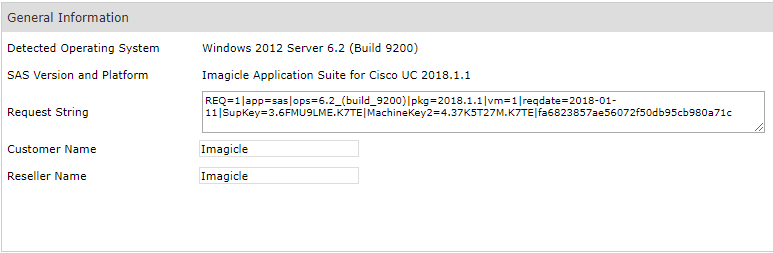

Prior to Imagicle 2019.Summer.1 release, Admin ⇒ License web portal menu includes almost same information available through latest "Offline Activation" method:

Request String
Customer name

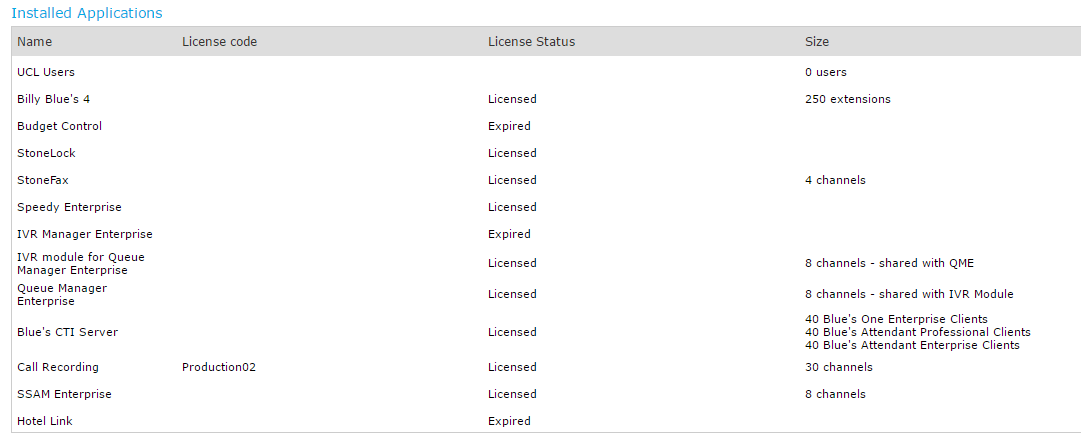

The list of all applications, with relevant license code, status and size

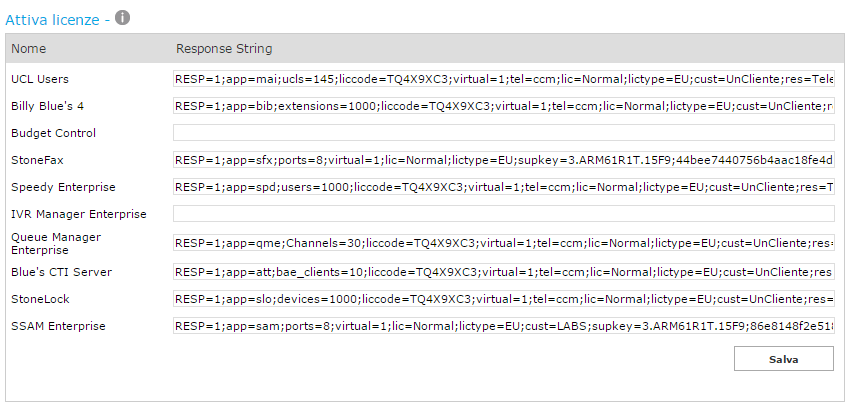

"Response String" field is available, too. Instead of having a single, long Response String, here you have to enter a Response String for each license/application you need to activate, like below screenshot sample:

Hit Save to enable licenses.
