SIPREC Configuration

SIPREC recording of PSTN calls on Cisco CUBE or Cisco CME

This recording method is suitable for the following scenarios:

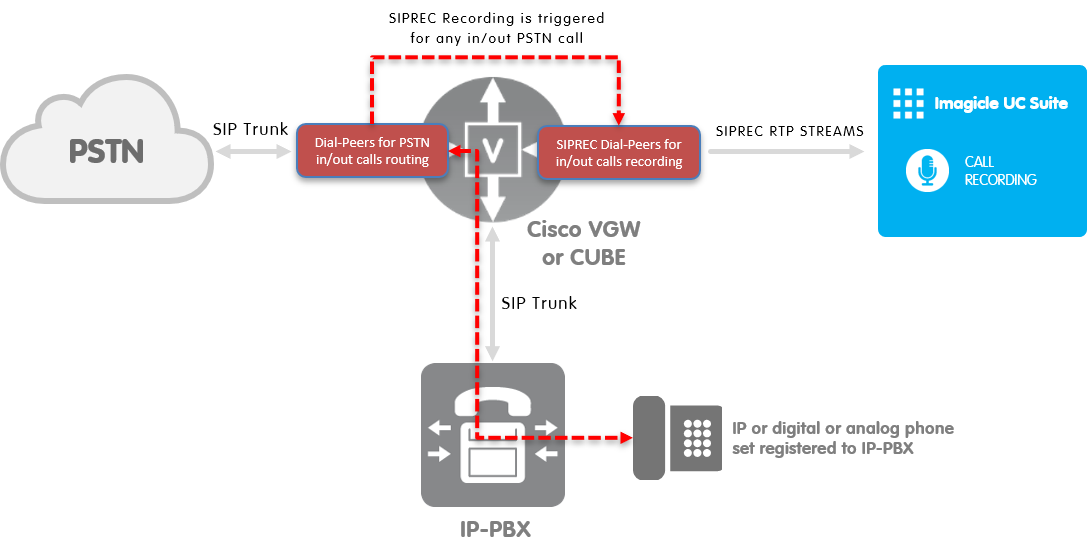

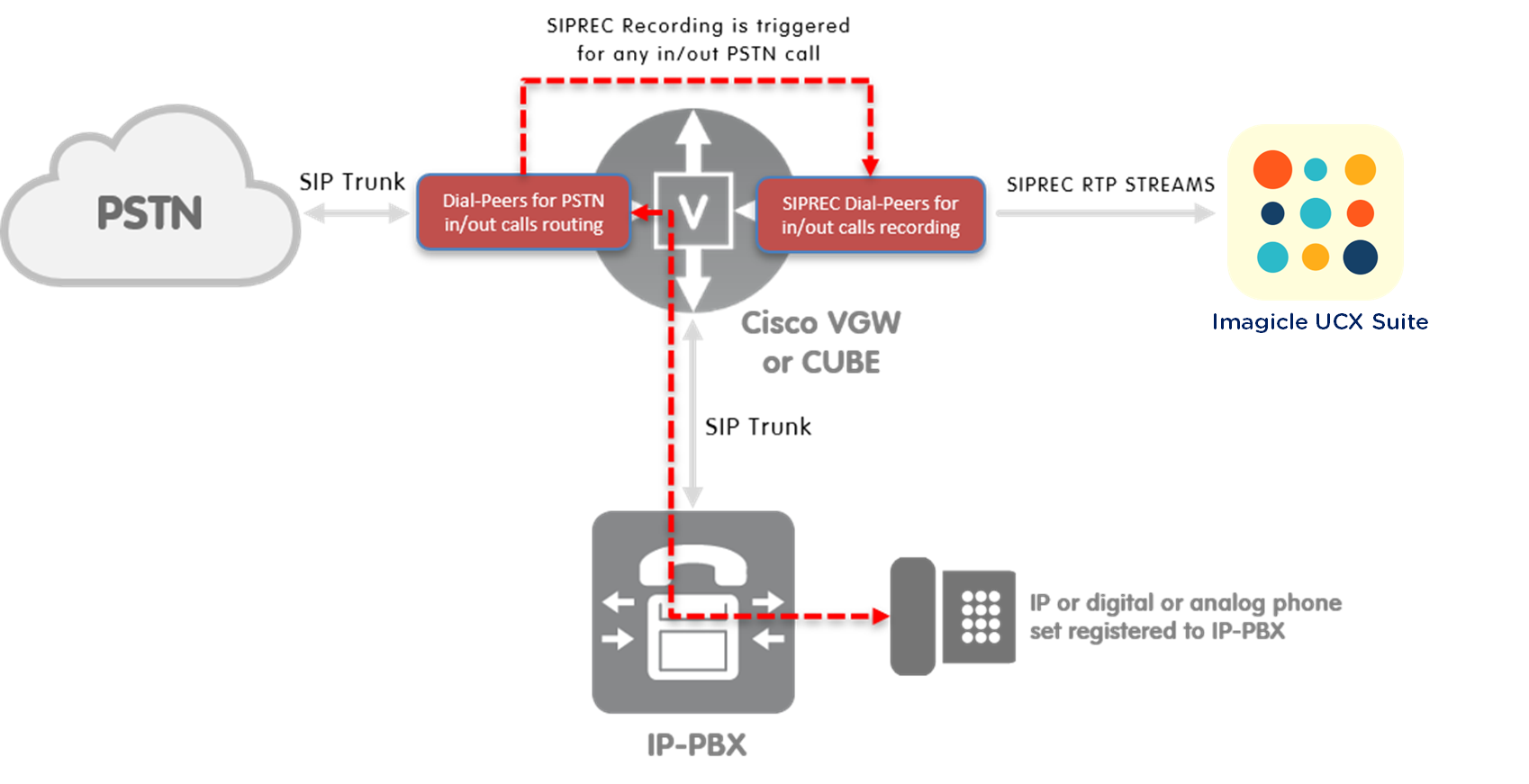

Cisco CUBE as “Session Border Controller”, to grant SIP-based PSTN access to your PBX (Cisco UCM or any other IP-PBX). See below:

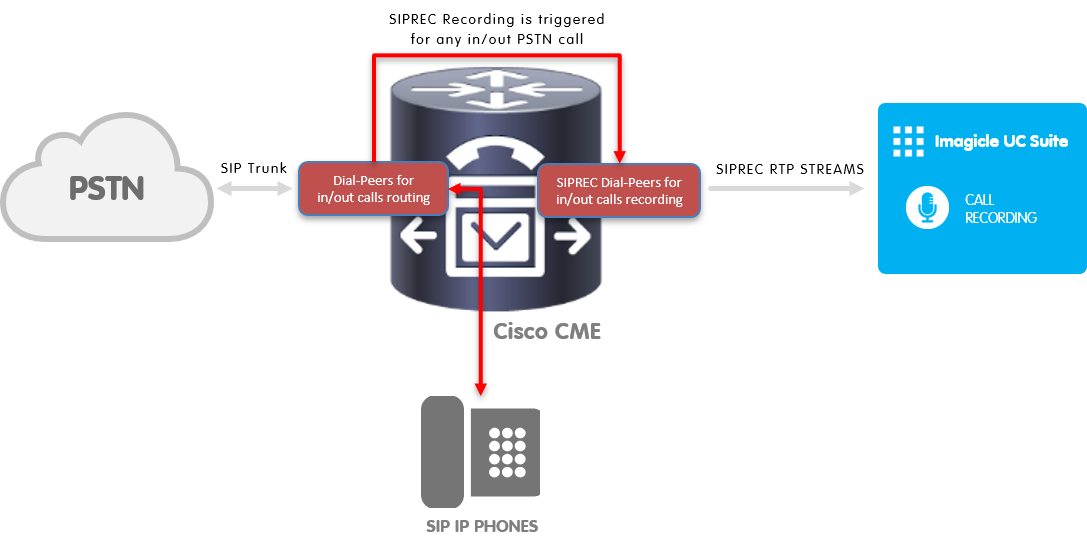

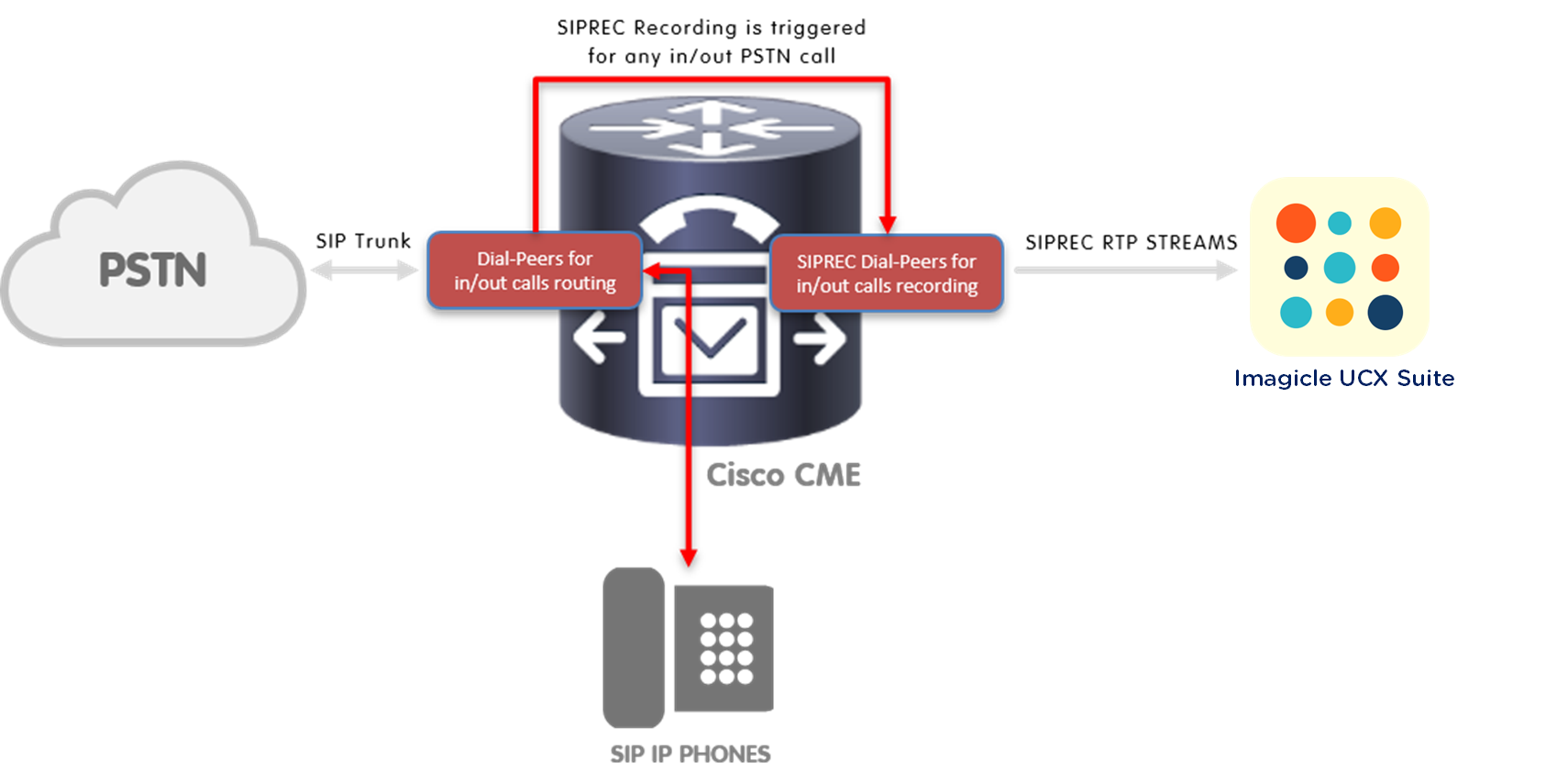

Cisco CME, with carrier’s SIP trunk toward PSTN. See below:

Both Cisco CUBE or Cisco CME should include NN x trunk licenses "CUBE-T-STD" to trigger SIPREC recording, where NN is the total number of concurrent calls to be recorded (calculation must include conversations on hold, on phone lines enabled to Imagicle Call Recording).

Configurations on Cisco Gateway (CUBE or CCME appliance)

In this scenario, two media class with relevant media profile should be defined, respectively for inbound and outbound PSTN calls recording using SIPREC:

Inbound PSTN calls:

CODE

media profile recorder 101
  description MEDIA PROFILE TO IMAGICLE RECORDER - INBOUND CALLS
  media-type audio
  media-recording 9001
!

media class 101
  recorder profile 101 siprec

Outbound PSTN calls:

CODE

media profile recorder 100
  description MEDIA PROFILE TO IMAGICLE RECORDER - OUTBOUND CALLS
  media-type audio
  media-recording 9000
!

media class 100
  recorder profile 100 siprec

Then you need to amend existing dial-peers to route inbound and outbound calls, by respectively adding above defined SIPREC media-class. See below sample:

CODE

dial-peer voice 7100 voip
  description INCOMING CALLS FROM PSTN
            |
            |
            |
  media-class 101
  codec g711alaw
  dtmf-relay cisco-rtp
  no vad
!

CODE

dial-peer voice 7000 voip
  description OUTGOING CALLS TO CARRIER SIP TRUNK
            |
            |
            |
  media-class 100
  codec g711alaw
  dtmf-relay cisco-rtp
  no vad
!

The following dial-peer voip must be created from scratch, to record incoming PSTN calls, including a specific voice class sip-profile to customize SIP INVITE “From” header:

CODE

voice class sip-profiles 101
  request INVITE sip-header From modify "<sip:(.*)>(.+)" "<sip:\1;x-incoming;x-anchor-index=1>\2"
!

 dial-peer voice 9001 voip
  description Imagicle SIPREC Server (incoming calls recording)
  destination-pattern 9001
  session protocol sipv2
  session target ipv4:<IAS_IP>:5070     <-- Imagicle Recorder’s IP
  voice-class sip profiles 101
  session transport tcp
  voice-class sip options-keepalive up-interval 10 down-interval 10 retry 3
  codec g711ulaw
  dtmf-relay rtp-nte
  no vad
!

The following dial-peer voip must be created from scratch, to record outgoing PSTN calls, including a specific voice class sip-profile to customize SIP INVITE “From” header:

CODE

voice class sip-profiles 100
  request INVITE sip-header From modify "<sip:(.*)>(.+)" "<sip:\1;x-outgoing;x-anchor-index=1>\2"
!

CODE

dial-peer voice 9000 voip
  description Imagicle SIPREC Server (recording outgoing calls)
  destination-pattern 9000
  session protocol sipv2
  session target ipv4:<IAS_IP>:5070     <-- Imagicle Recorder’s IP
  voice-class sip profiles 100
  session transport tcp
  voice-class sip options-keepalive up-interval 10 down-interval 10 retry 3
  dtmf-relay rtp-nte
  codec g711ulaw
  no vad
!

Other supported SIPREC recording scenarios

SIPREC recording with analog/TDM trunks to PSTN

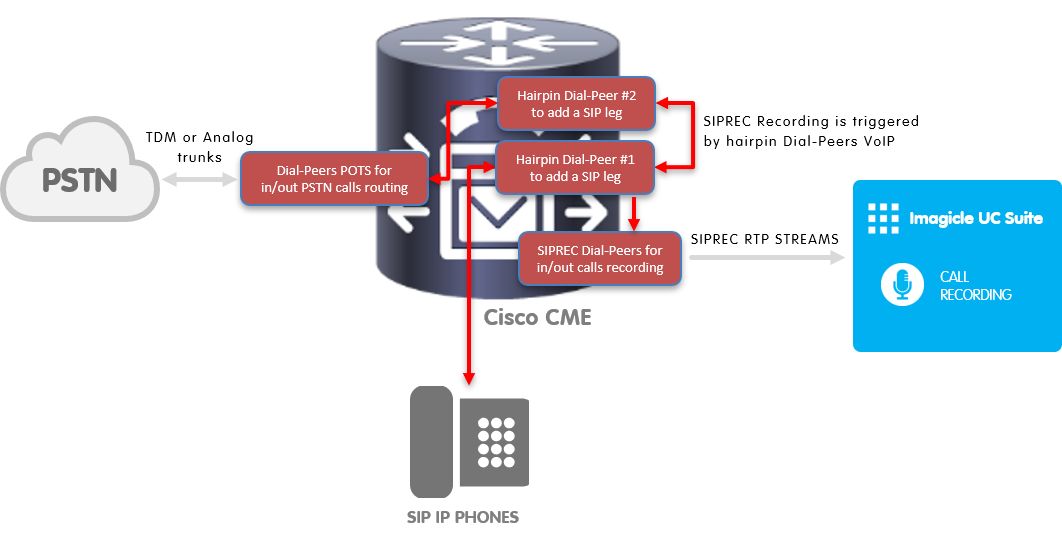

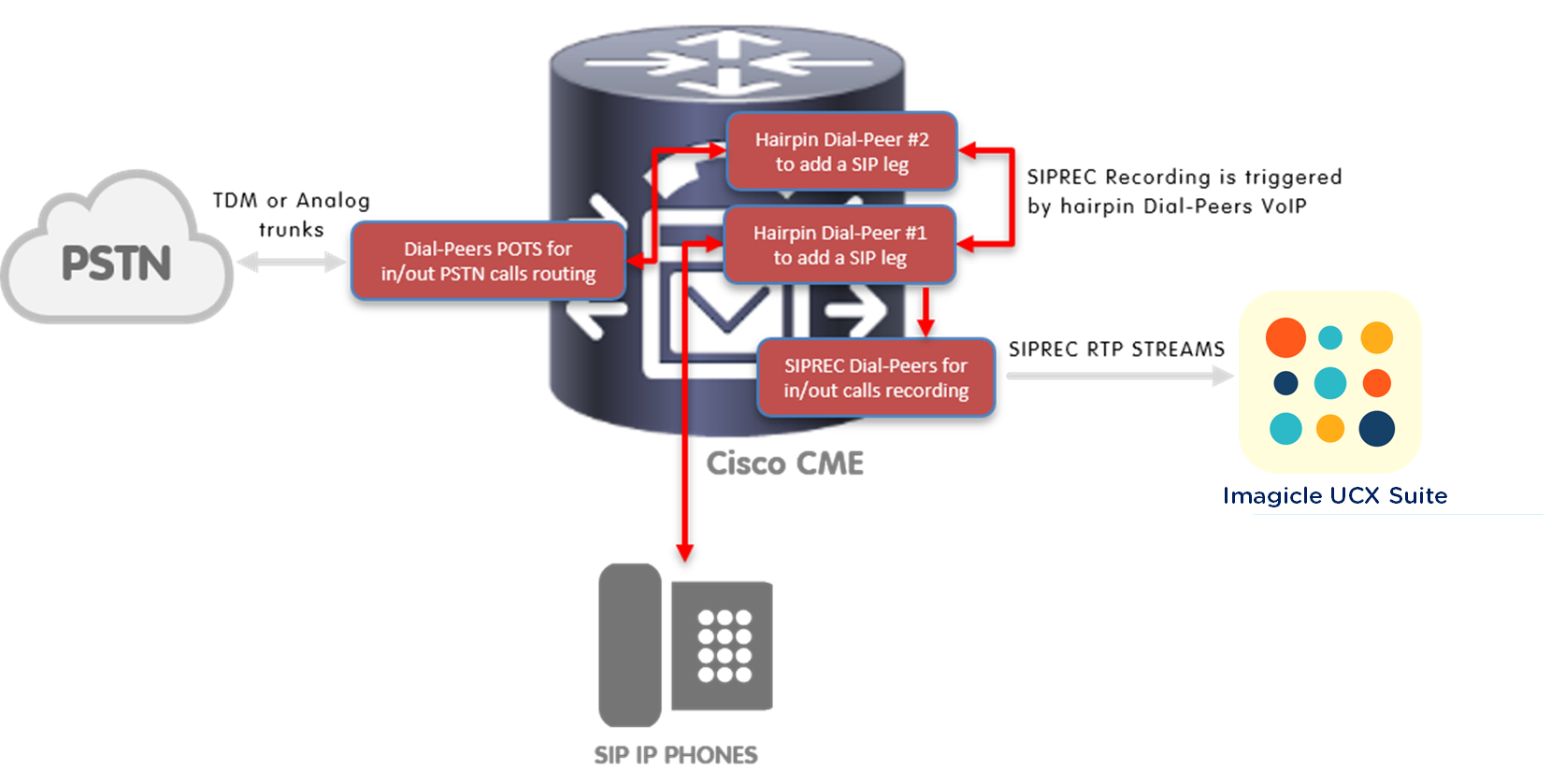

Imagicle Call Recording allows to leverage SIPREC technology to record calls routed to analog or TDM-based PSTN trunks. In this case, while the call is not fully SIP-to-SIP, it is required to add "Hairpin" dial-peers to engage a SIP-to-SIP call leg and trigger SIPREC recording streams. See below sample scenario including Cisco CME:

SIPREC to record internal calls between analog phones

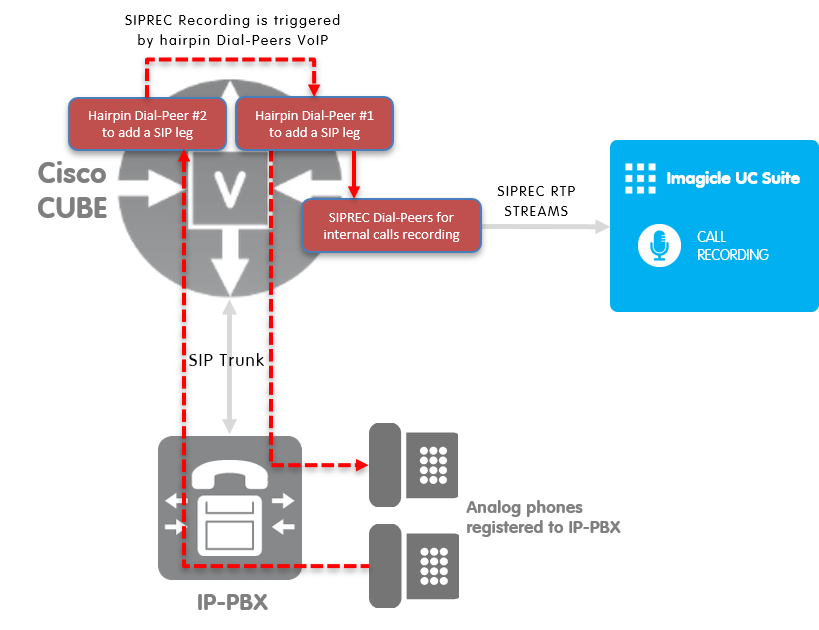

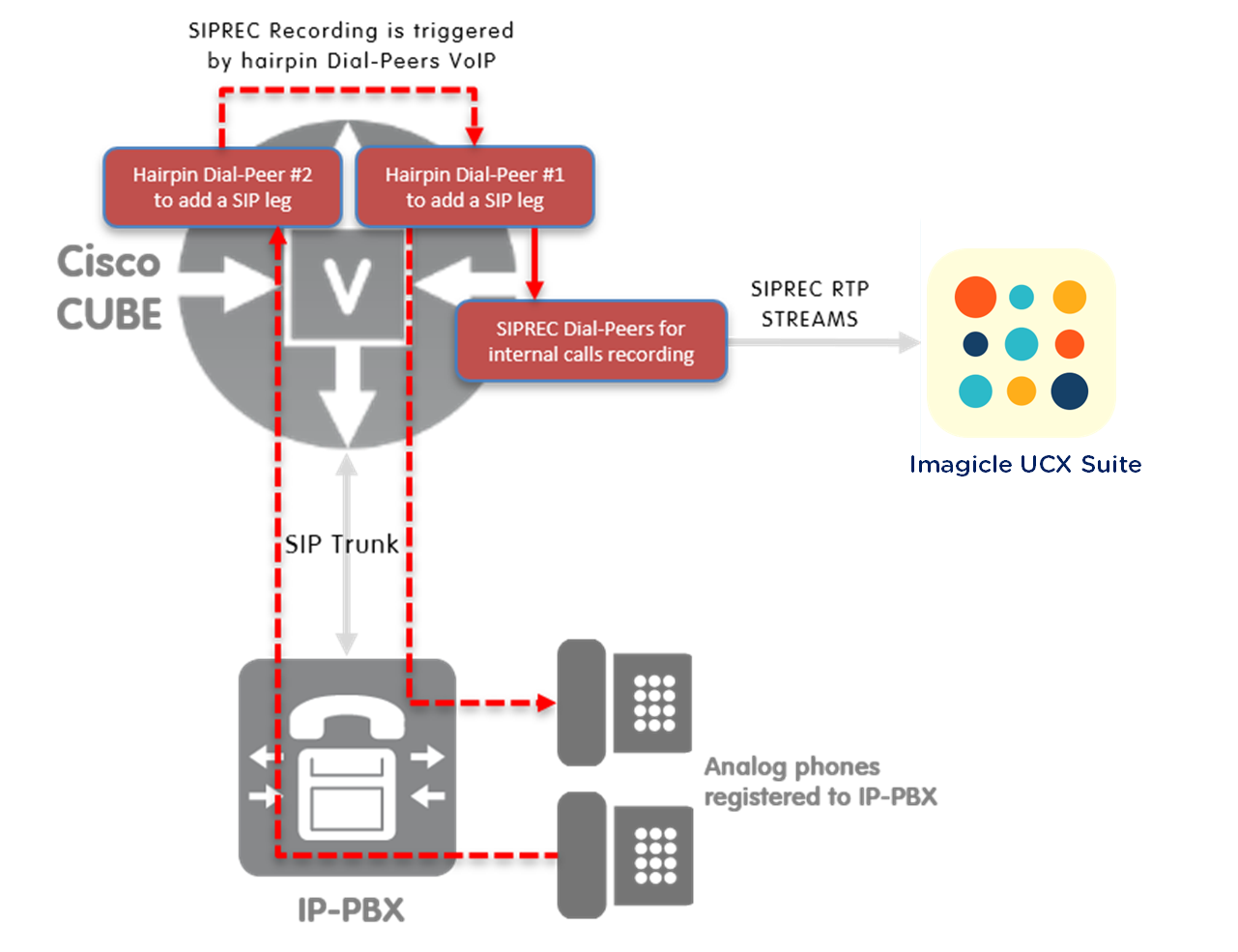

Internal calls involving analog phones can be recorded too, again involving "Hairpin" dial-peers to loopback analog calls through a Cisco CUBE. See below a sample scenario including IP-PBX and a dedicated CUBE for recording purposes:

Configure Live Keep recording trigger

SIPREC supports both always-on and Live Keep recording methods. If the latter is in use, please remember to configure the CUCM Phone Service to trigger the recording, as explained here.

Configuration on Imagicle side

In order to enable SIPREC recording, it is required to properly license the UC Suite by channels or users. Moreover, the following settings should be applied from Imagicle UC Suite web portal for Administrators:

Users’ management:
- Please add a user for each internal extension number you need to enable for SIPREC recording.
- Users’ permission: each recording-enabled user should have at least the permission level "(2) Record Only"
Call Recording Global parameters:
- Internal or external data Storage, with retention policies
- Email notifications, if required
