Webex Calliing Native Recording Integration
Cisco Webex Calling MT Cloud infrastructure provides own audio convenience recording feature, where Webex users registered on Control Hub can be enabled for on-demand or always-on recording.
Recorded conversations are stored in Cisco Webex Cloud for a limited period of time, with a limited access available to administrators and single users.
That’s why Imagicle proposes the import of such Webex Recorder conversations from Cisco Cloud to Imagicle Cloud, supporting unlimited retention and multiple permission levels for standard users, group supervisors and administrators.
Moreover, Imagicle Call Recording provides an enhanced web portal and Webex gadget to browse and listen to recorded conversations, with search features and call tagging for Legal Hold.
Integration Requirements
Imagicle UCX Platform must be in place, with Call Recording Essentials (or greater) license activated.
A Webex Full Admin account, to apply configurations on Control Hub
Users, Virtual Lines or Workspaces to be enabled for Webex/Imagicle Call Recording must have a Webex Professional license at least.
Limitations
As per Cisco documentation, Calls on Webex can't be recorded because they are not Webex Calling calls. These are the calls made using webex client, selecting "Call on webex" and not the user's phone number. Please note that a recording solution for this kind of calls doesn't currently exist.
Configurations from Webex Control Hub

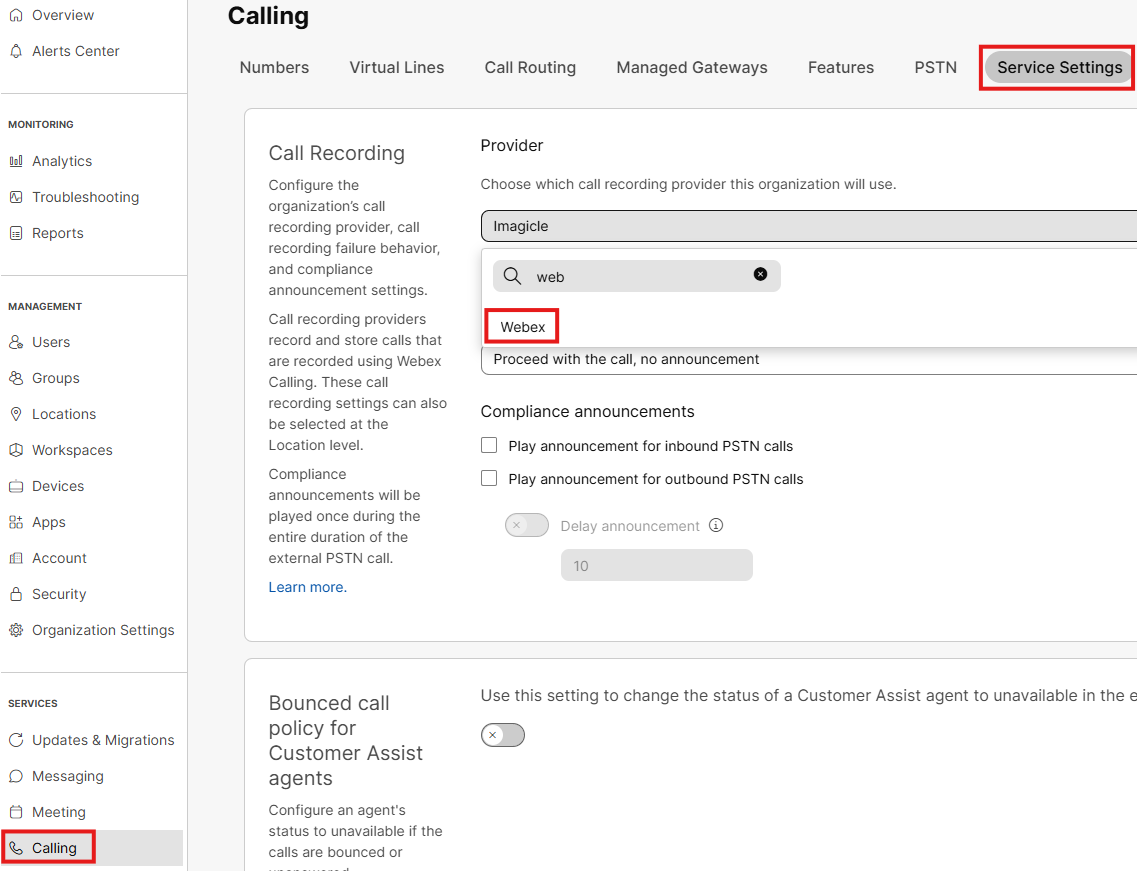

Please access to Cisco Webex Control Hub with Full Admin credentials and go to Calling ⇒ Service Settings. Scroll down to “Call Recording Provider” section and select Webex as recording provider. Hit Save. See below screenshot:

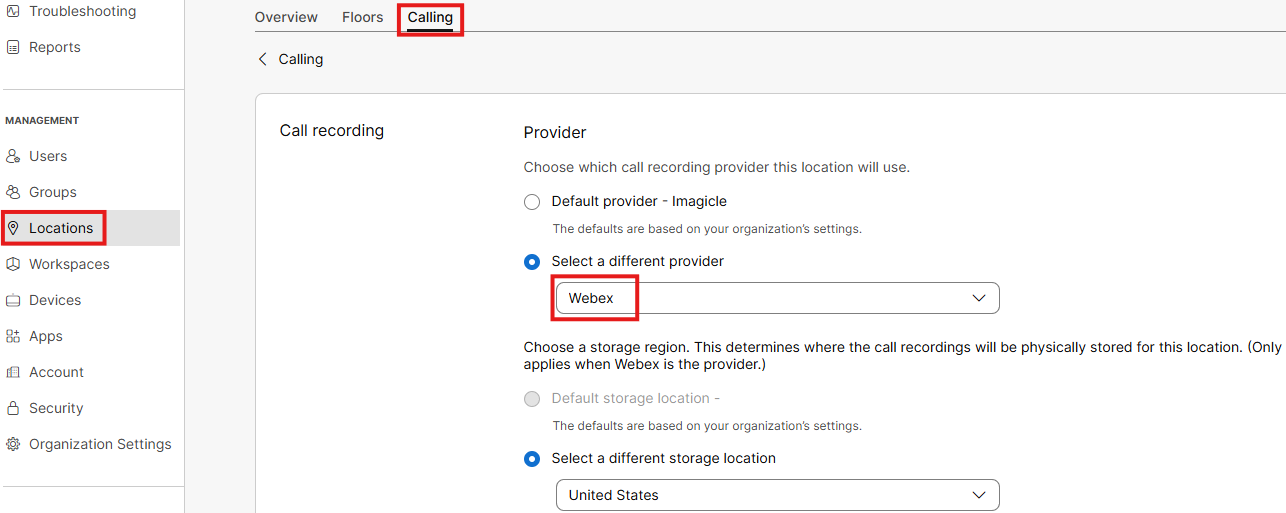

You can also enable Webex Recording at Location level. Just check if your Location is correctly configured under Locations ⇒ <Location Name> ⇒ Calling ⇒ Call Recording Provider:
Here you can also choose the Cisco storage region for recorded conversations.

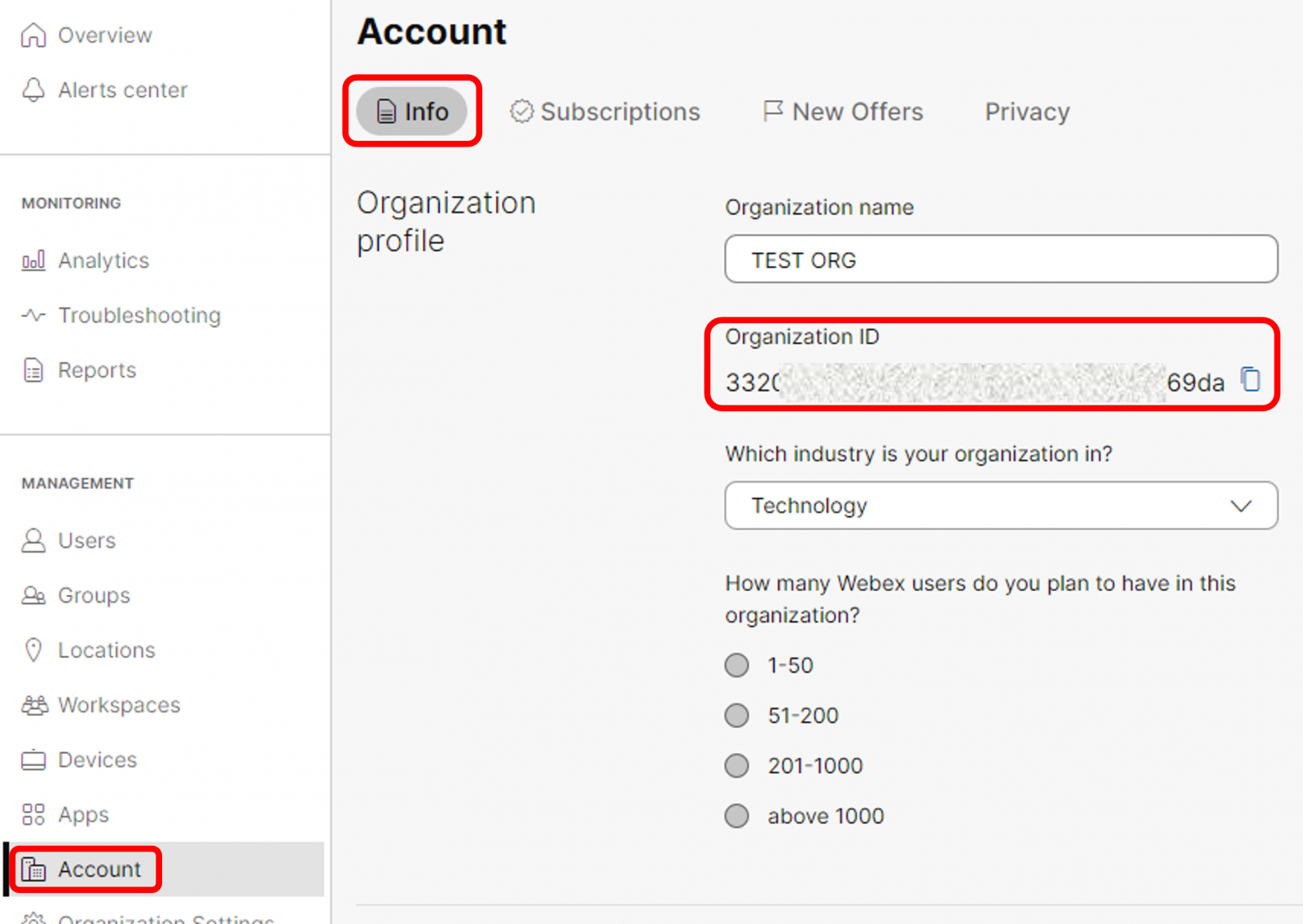

Now select "Account" from left panel and, within "Info" tab, take note of Organization ID. It is required later on in this procedure:
Enabling users to Webex Recording

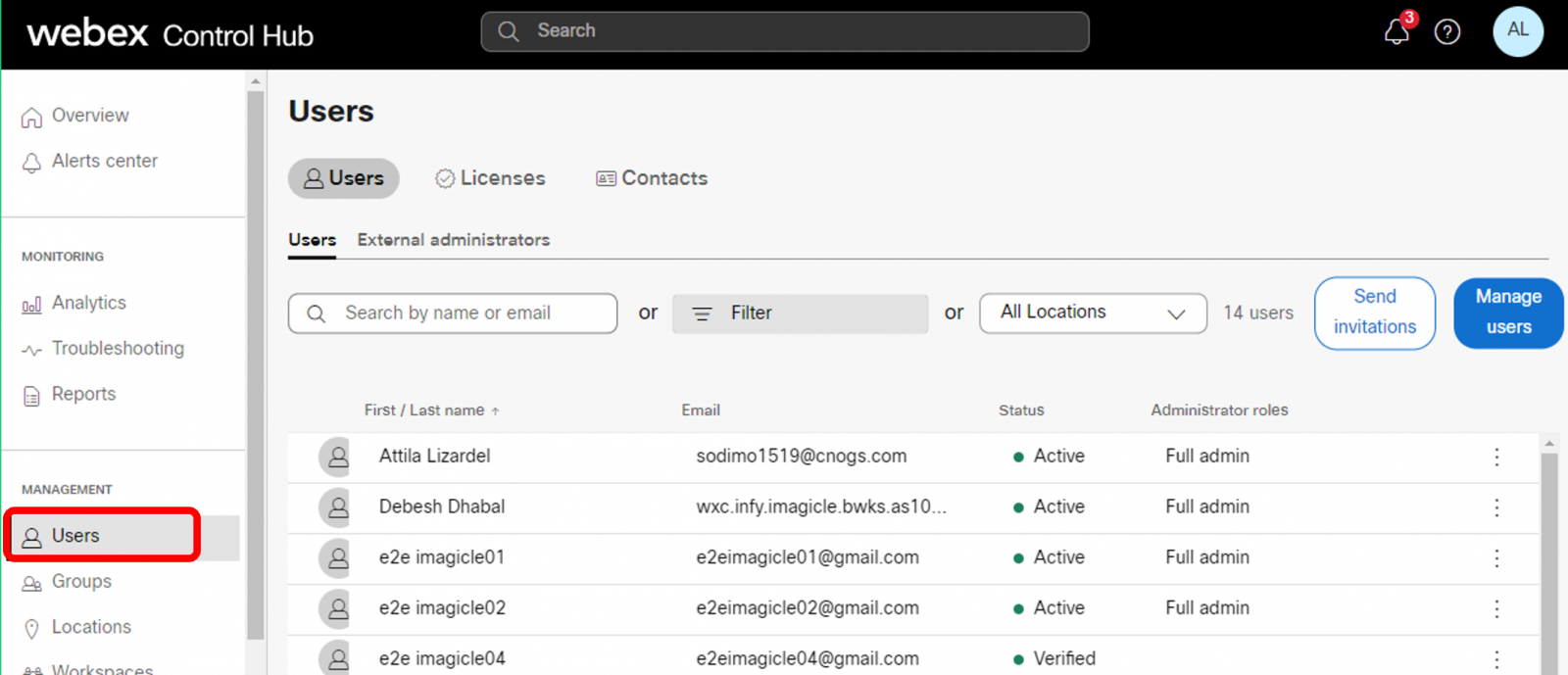

Please go to Users menu and select the user you wish to enable for Webex Recording:

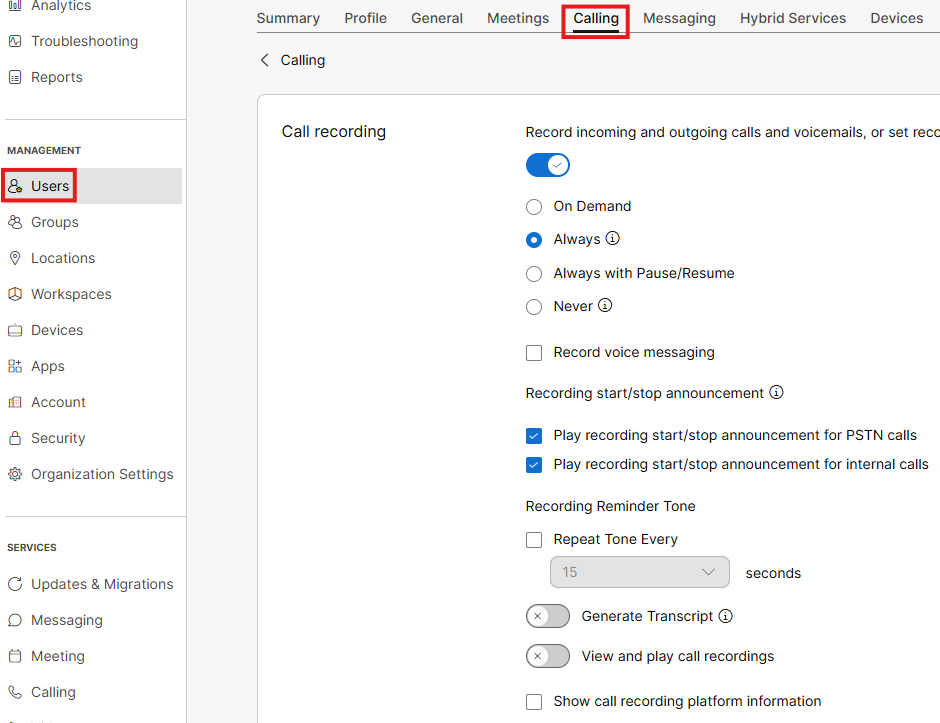

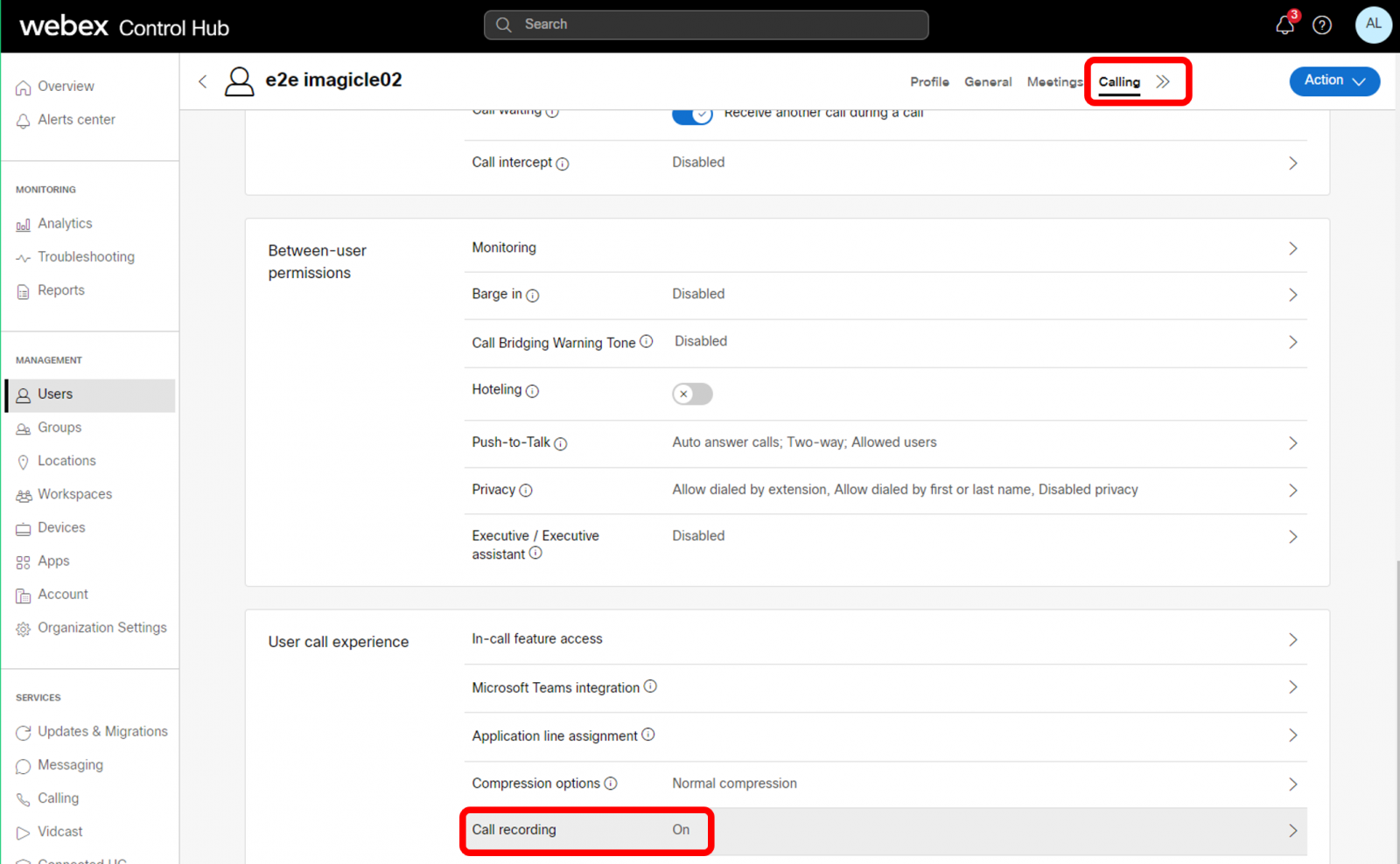

Within user’s details, please select “Calling” section and scroll down to “User call experience”. Click on “Call recording” to access the relevant configuration:
A screen pop-up appears, where you can enable Call recording (toggle switch) and select one of the available recording modes:
On Demand: recording is triggered by pushing a button on Webex client or IP Phone.
Always: recording is automatically triggered for each call performed by user.
Always with Pause/Resume: recording is automatic, and the user can temporarily pause the recording to acquire sensitive information. An additional toggle button is added in Webex client or IP Phone for this purpose.
Never: recording is disabled for this user.
On the same window, you an enable an announcement (privacy statement) to be automatically played back once recording is triggered. The announcement can be customized.
It is also possible to playback another announcement while pausing/resuming the recording.
Finally, you can enable a recording-awareness periodical tone (beep), audible during the whole recording duration.
All above announcements and tones are available to both local and remote parties. See below screenshot sample:
Hit Save. If you need to enable additional users, please repeat the steps highlighted in this paragraph.
Compliance Officer Account

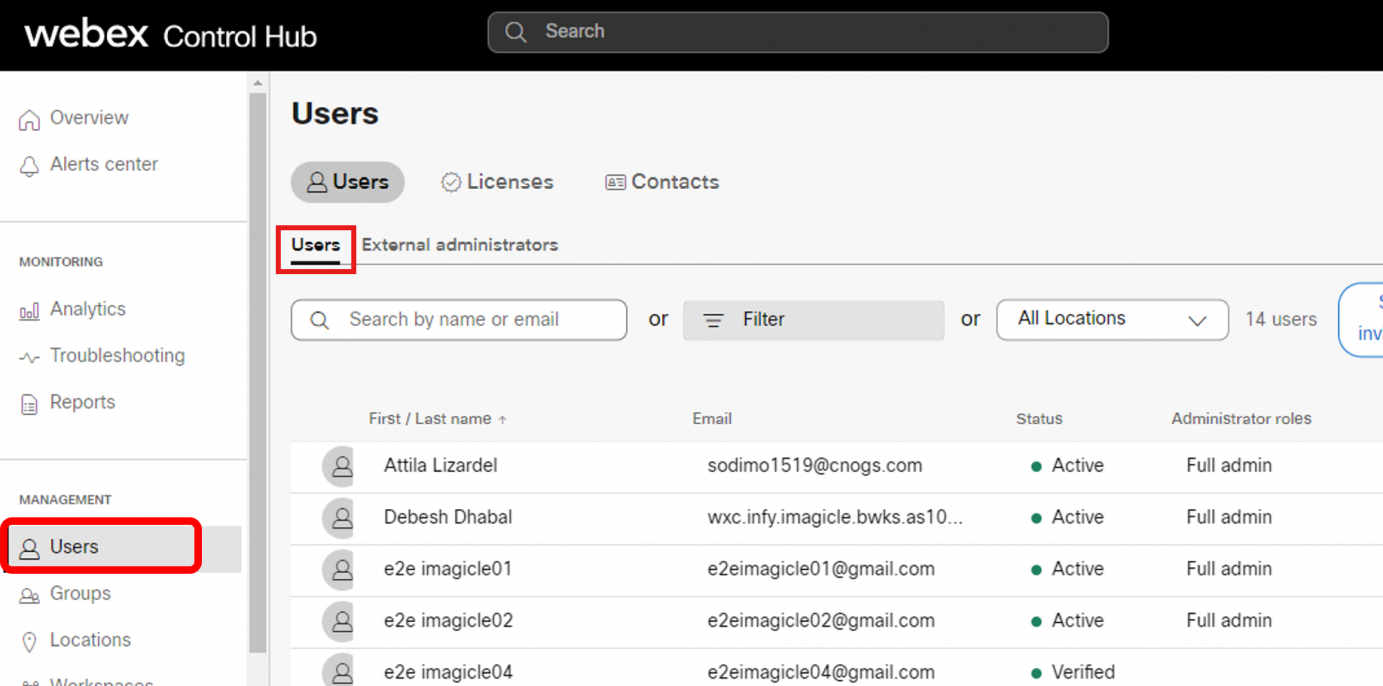

Go back to Users list:

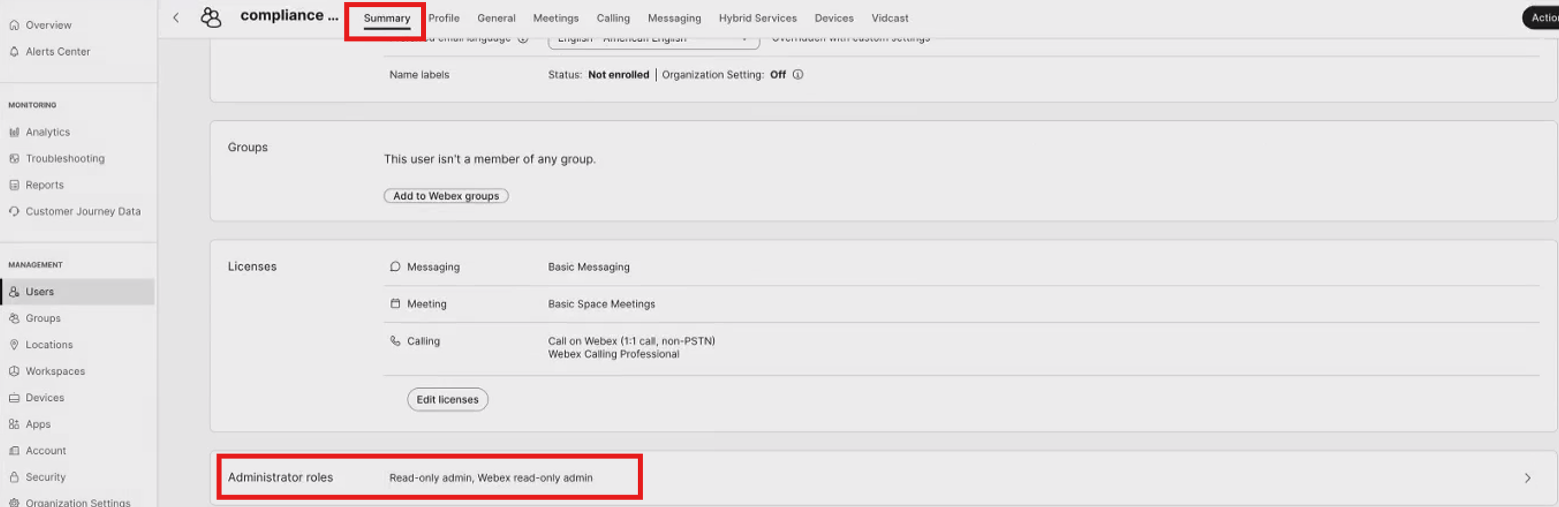

Please locate a local user within customer’s domain which should be elected to “Compliance Officer”, to allow the required integrations. Click on the selected user to access the Summary page:

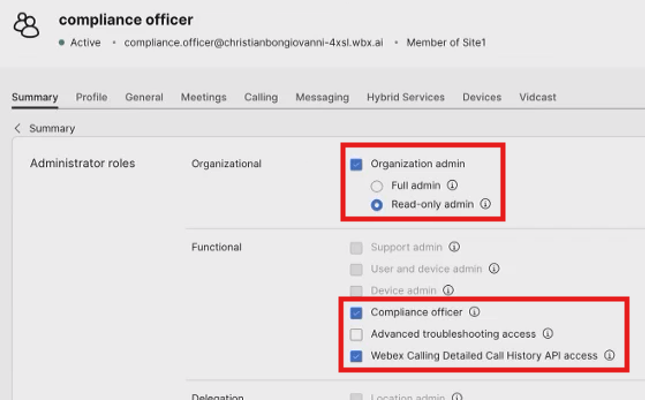

Click on Administrator roles and make sure that user has Organizational Full admin permissions; moreover, same user must have Compliance officer and Webex Calling Detailed Call History API access roles. See below sample:
Save new roles setting.
Authorize Imagicle Compliance Recording App
Please logout from Webex Control Hub and login again with above defined Compliance Officier account.

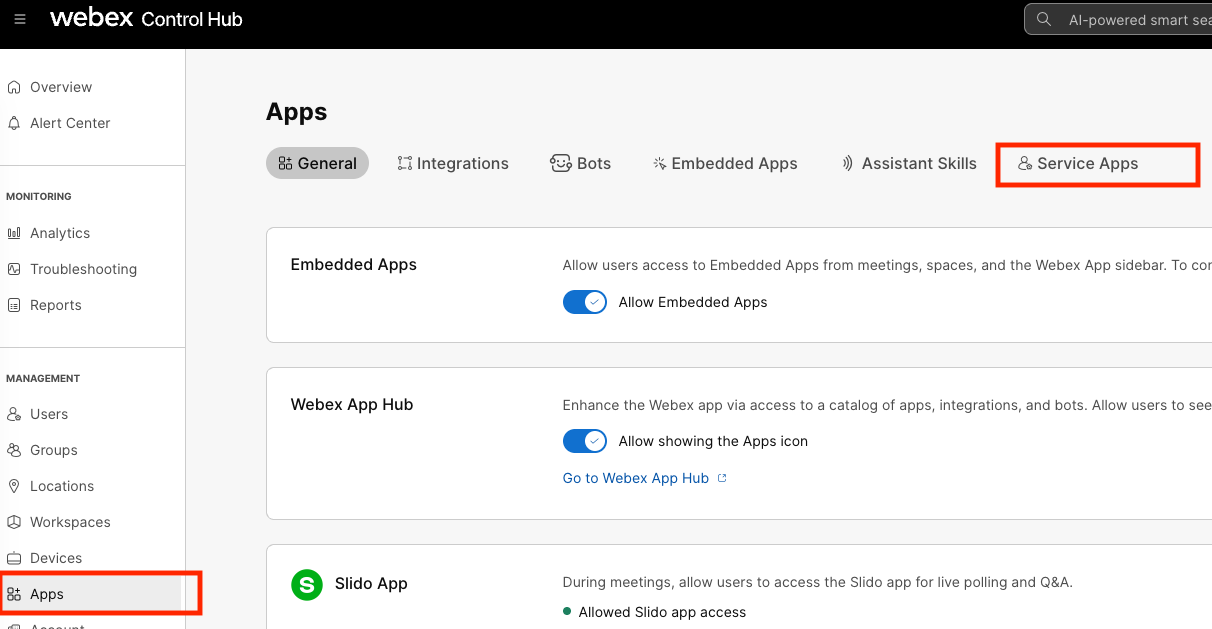

Go to Management ⇒ Apps ⇒ Service Apps

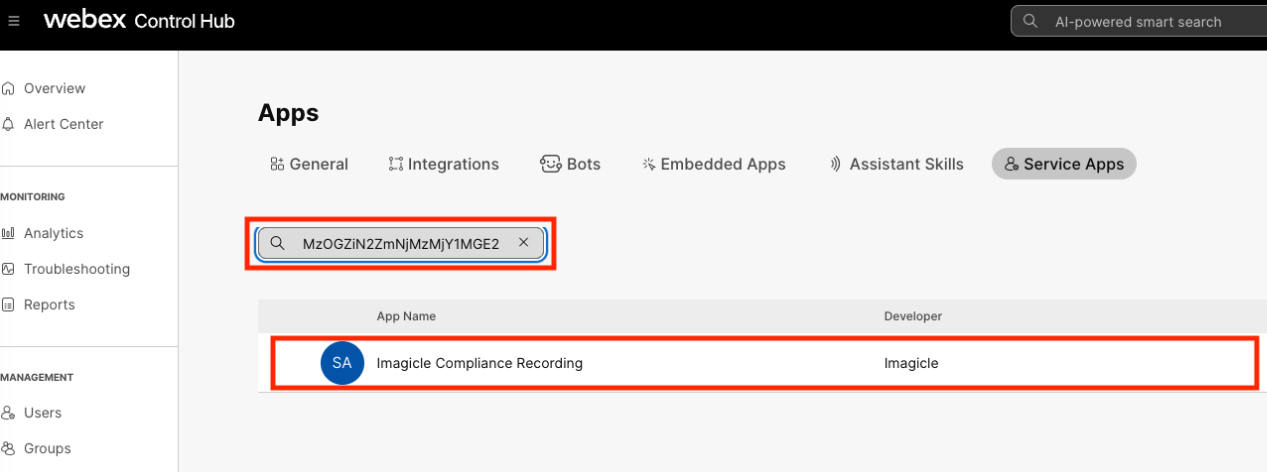

Search for Imagicle Recorder app by using the following ID: Y2lzY29zcGFyazovL3VzL0FQUExJQ0FUSU9OL0M4NjJhMmI2OWUwZmE5OTY1NzAyNDY3ZjAxMDIxZjJhYjdjMDg2MWJiMzI3MTRlNWMzOGZiN2ZmNjMzMjY1MGE2

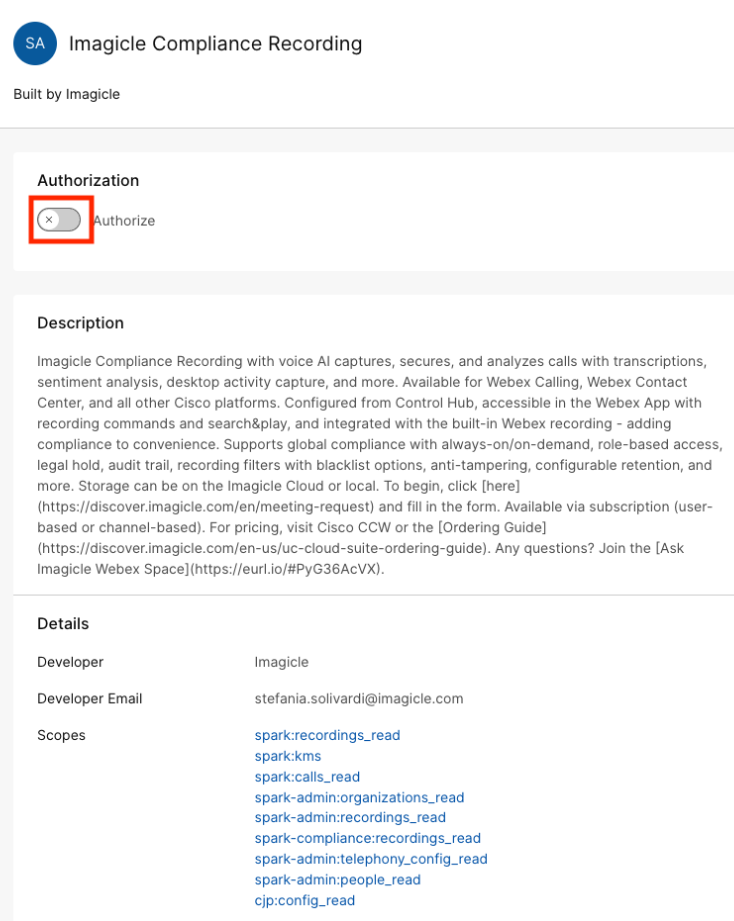

Once located, click on it to display its properties and scopes in the right-hand panel:
Please toggle the “Authorization” switch to authorize the app and hit Save.
Imagicle UCX Platform recording users
Make sure that the all recording-enabled users on the Imagicle UCX Platform web portal have been imported, including properly filled "Phone Number" field. More details here.
Final Stage
Please send to Imagicle Support the following details:
Webex region
Webex Org ID
Imagicle applies required authorizations to retrieve recordings from Cisco Webex Cloud, so you can safely access them from Imagicle UCX Platform web portal.
Call Recording Gadget for Webex clients
Please be aware that you can enable an Imagicle Call Recording custom tab for your Webex users. The procedure is highlighted in this KB.
