Solution-specific Configuration

Alice Corporate - Telecom Italia

In the "Manage Service", "Ip Routes" web page configure the following parameters.

• Protocol: SIP

• Negotiation: Allow G.711 for outgoing faxes

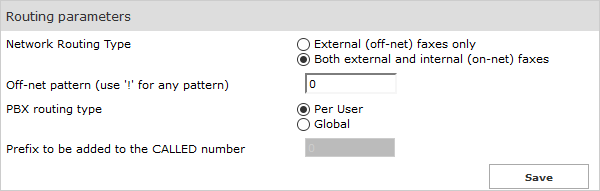

• Network routing type: Both offnet and on-net

• Off-net pattern: Enter the common prefix to reach the PSTN

• PBX Routing Type: Per user

Edit the default route so that it points to the PBX.

In the user's management configure the "Fax Routing Prefix" and "Fax Off-net Number" as required.

Impresa semplice -Telecom Italia

In the "Manage Service", "Ip Routes" web page configure the following parameters:

• Protocol: SIP

• Negotiation: Allow G.711 for outgoing faxes, Disable T.38 for incoming faxes

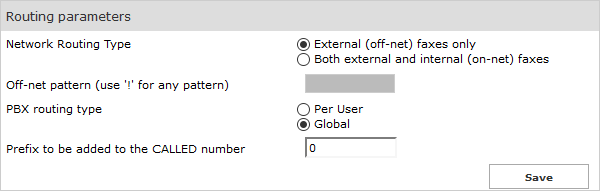

• Network routing type: Extenal (offnet) faxes only

• PBX Routing Type: Global

• Prefix to the called number: enter 0 if needed to reach the PSTN

Edit the default route so that it points to the PBX.

In the user's management configure "Fax Off-net Number" as required.

Unigate - FastWeb

In the "Manage Service", "Ip Routes" web page, configure the following parameters:

• Protocol: SIP

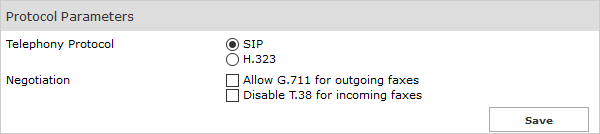

• Negotiation: No selection (Allow G.711 UNCHECKED and Disable T.38 UNCHECKED)

• Network routing type: External (offnet) faxes only

• PBX Routing Type: Global

• Prefix to the called number: enter 0 if needed to reach the PSTN
