This article describes how to configure Cisco Duo to enable Imagicle users to login to web portal, gadgets and Attendant Console with Single Sign-on based on SAML protocol.
Prerequisites
In order to successfully configure your Cisco Duo, you should have the following data:
-
User Pool ID
-
Redirect URI
More details are available here.
Procedure
-
Login to your DUO admin portal
-
Select Applications item from the left menu panel
-
Click on “Protect an Application”
-
Enter “generic” in the search box
-
Hit “Protect” button, included in “2FA with SSO hosted by Duo” protection type
-

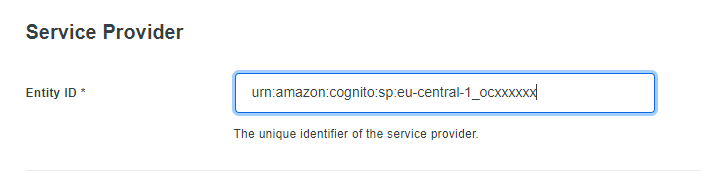

In "Service Provider" section, please enter the User Pool ID in the "Entity ID" field. See below:
-

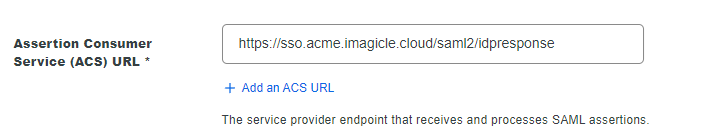

In the “Assertion Consumer Service (ACS) URL” field, please enter the Redirect URI. See below:
-

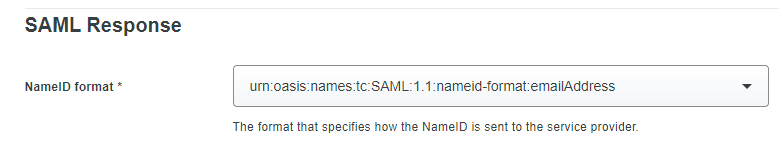

In "SAML Response" section, enter the NameID format corresponding to an email address. See below:
-

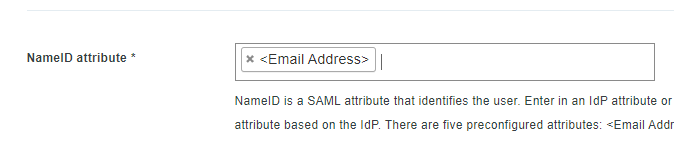

In NameId attribute, please select "Email Address". See below:
-

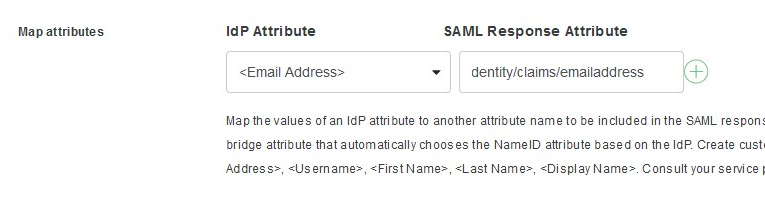

In the Map Attributes section, configure a map for the <Email address> attribute to be mapped into the SAML Response attribute “http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress”
See the following picture:
-

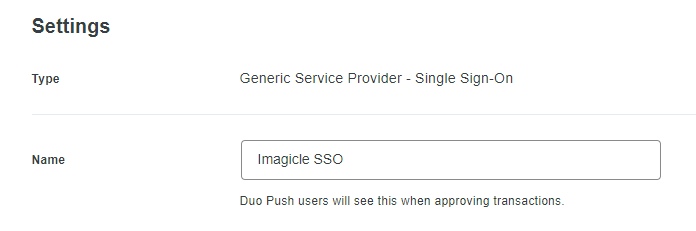

In “Settings” section, enter the Name "Imagicle SSO" to identify Imagicle applications. See below:
-
Hit “Save”
-

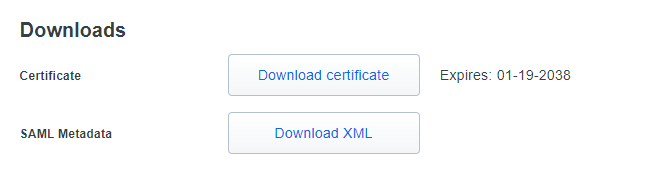

Click on “Download XML” button:
-
Please send downloaded file to Imagicle Team to complete the SSO federation.
