Contact Manager Entp. UDS Directory

Imagicle Contact Manager Entp. allows the access to own directories from Cisco Jabber or other video endpoints supporting UDS directory only.

This feature can be enabled by selecting relevant menu entry:

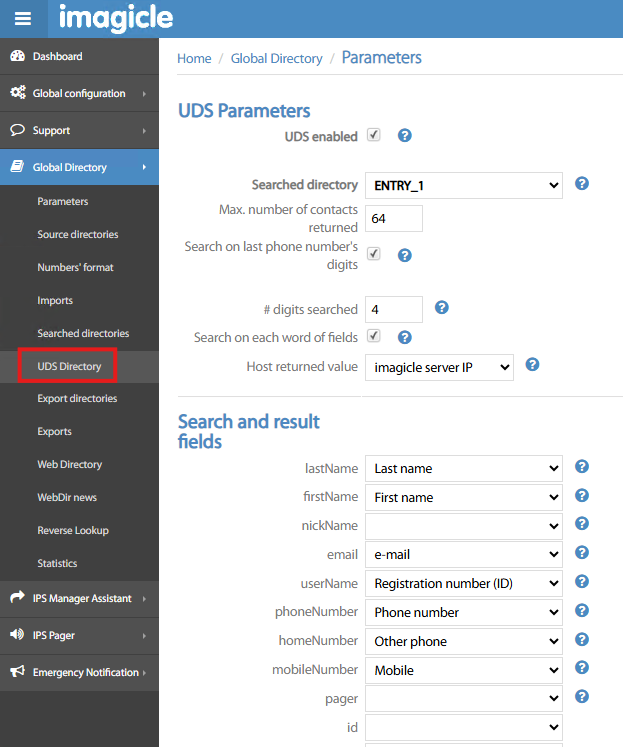

UDS Parameters

  • UDS Enabled → UDS directory emulation is enabled by checking this flag.

  • Searched directory → Pull-down menu to select the Searched Directory entry to expose through UDS protocol.

  • Max number of contacts returned → This is the maximum number of contact entries to be displayed upon contacts search.

  • Search on last phone number’s digits → If flagged, contacts search can be performed by entering the last nn digits of a phone number. See also next field.

  • # digits searched → This is the number of last phone number’s digits involved in contact search.

  • Search on each word or field → If flagged, UDS search tries to match all contact field and every single word within each field.

  • Host returned value → Pull-down menu includes three different options used to populate UDS XML URL when returning results:

    • localhost

    • imagicle server ip

    • CUCM server ip

For example: https://localhost:8443/cucm-uds/users

Search and result fields

Here you can enable multiple contact attributes to search within. Available attributes depends on chosen Searched Directory entry.

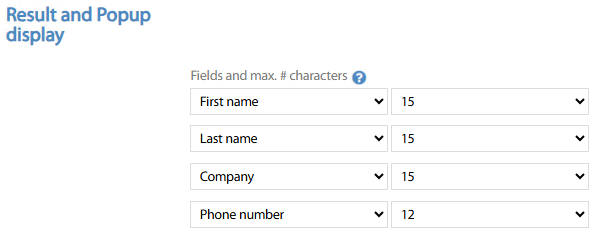

Result and Popup display

You can choose up to four contact attributes to be displayed in search results pop-up. For each contact attribute, you can select relevant max displayed field length.
